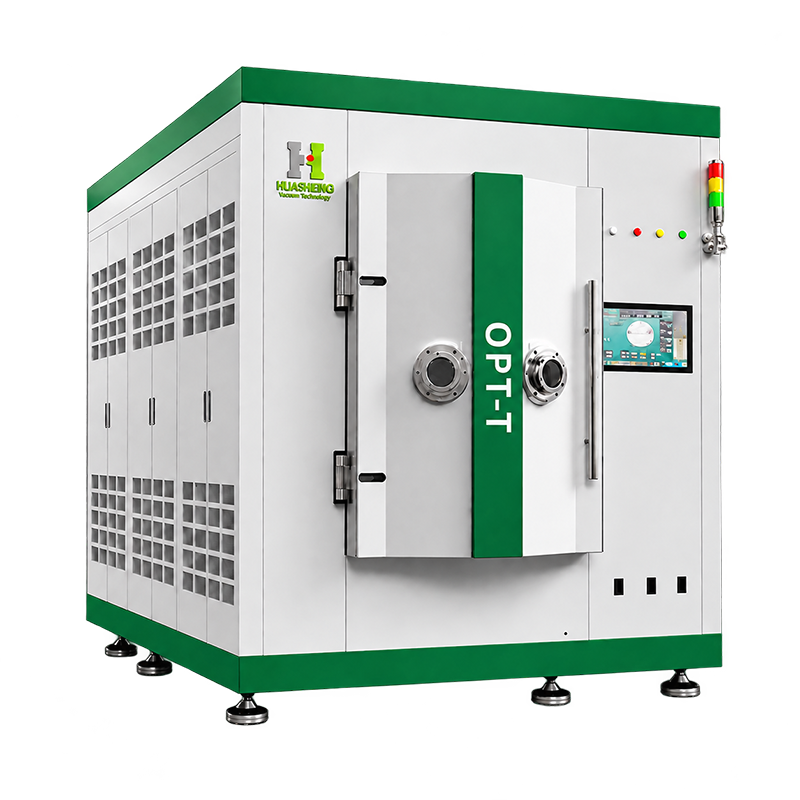

    OPT-T – Thermal Evaporation Optical Coating Equipment

    OPT-T is thermal evaporation optical coating equipment for metallic reflective and decorative films on plastic substrates, including ABS, PP, PC, TPU and PET. The machine uses resistance heating to evaporate the coating material under vacuum. Applications include automotive headlights, plastic consumer products and packaging shells.
    This optical coating system supports metallic mirror, coloured and NCVM non-conductive finishes. Its resistance-heated evaporation source is designed for rapid evaporation of low-melting-point metals, with working temperatures from room temperature to 80°C.

      Download Product Brochure
      Coating1

      15 +

      Years Experience

      Installation1

      700 +

      Installations Worldwide

      Customized Solutions3

      OEM

      Solutions Available

      Innovation Driven1

      30 +

      Countries & Regions

      Key Benefits of OPT-T Optical Coating Equipment

      Resistance-Heated Evaporation

      The evaporation source uses resistance heating and high-melting-point metal boats or hangers for the rapid evaporation of low-melting-point coating metals.

      Short Thermal Exposure

      Short thermal radiation time supports coating applications involving heat-sensitive plastic substrates.

      Metallic and NCVM Finishes

      Coating effects include chrome-coloured, silver-coloured, gold-coloured, gunmetal, semi-transparent NCVM and rainbow mirror finishes.

      Simple Equipment Structure

      The streamlined equipment structure supports convenient operation and maintenance.

      OPT-T Features

      • Resistance-heated thermal evaporation
      • ABS, PP, PC, TPU and PET substrate applications
      • Aluminium, nickel-chromium and silver wire coating materials
      optt
      • Room-temperature to 80°C operation
      • Vertical drum carrier with 6, 8 or 9 axes
      • Touch-screen and PLC control

      Product Parameter

      Model
      		 OPT-T
      Coating Technology
      Thermal evaporation
      Working Principle Physical vapour deposition using resistance heating
      Substrate Materials
      ABS, PP, PC, TPU, PET and other plastics
      Typical Applications
      Automotive headlights, plastic consumer products and packaging shells
      Coating Effects
      		 Metallic mirror, coloured, NCVM non-conductive and rainbow finishes
      Common Coating Materials
      		 Aluminium wire, nickel-chromium wire and silver wire
      Working Temperature
      		 Room temperature to 80°C
      Ultimate Vacuum 6 × 10⁻⁴ Pa (no-load, clean-room condition)
      Chamber Size Options (Diameter × Height)
      Φ1400 × H1600 / Φ1600 × H1800 / Φ1800 × H2000 mm
      Workpiece Carrier Vertical drum drive frame
      Carrier Specification
      6 / 8 / 9 axes
      Carrier Motion Revolution and rotation; variable-frequency stepless speed regulation
      Process Gas Argon
      Control Modes Manual / semi-automatic / fully automatic; touch screen + PLC
      Pump System Mechanical pump, Roots pump, molecular pump / diffusion pump, holding pump

      OPT-T Optical Coating Equipment FAQ

      Find answers about OPT-T optical coating machine, including its coating process, applications and specifications.
      Contact us

      1. What is OPT-T optical coating equipment used for?

      OPT-T is used for coating automotive headlights, plastic consumer products and packaging shells. It supports metallic mirror, coloured and NCVM non-conductive finishes.

      2. How does OPT-T deposit coatings?

      Resistance heating evaporates the coating material under vacuum. The evaporated material reaches the substrate and condenses to form a thin film.

      3. Which plastic substrates are listed for OPT-T?

      The listed substrates include ABS, PP, PC, TPU and PET.

      4. What coating materials can OPT-T use?

      The listed coating materials include aluminium wire, nickel-chromium wire and silver wire.

      5. What is the working temperature of OPT-T?

      The listed working temperature is from room temperature to 80°C.

      6. What chamber sizes and carriers are listed?

      The chamber diameter and height combinations are Φ1400 × H1600, Φ1600 × H1800 and Φ1800 × H2000 mm. The vertical drum carrier is listed with 6, 8 or 9 axes.

      7. What control modes does OPT-T provide?

      The listed control modes are manual, semi-automatic and fully automatic, with touch-screen and PLC control.
