HD500Why Do PVD Coatings Perform So Differently?
A System-Level View on What Really Determines PVD Coating Quality
Many customers encounter the same confusion when evaluating PVD coatings:
If they are all “PVD”,
why do some coatings perform exceptionally well, while others fail quickly?
On the surface, the materials may look similar, and even the process names are the same.
However, in real industrial applications, coating performance can vary dramatically between suppliers.
The real reason is not the coating material itself, but the capability of the equipment system and the level of process control.
PVD Is Not One Process, but a Family of Technologies
Technically speaking, PVD (Physical Vapor Deposition) is not a single method. It refers to a broad category of deposition technologies, including:
Magnetron sputtering
Arc PVD
High Power Impulse Magnetron Sputtering (HiPIMS)
Hybrid and multi-source PVD systems
These systems differ fundamentally in equipment structure, plasma characteristics, energy input methods, and process controllability.
Therefore, saying “they are all PVD” has very limited technical meaning.
What really matters is which PVD system is being used, and how that system is engineered.
Five System Factors That Define PVD Coating Quality
1. Plasma Ionization Ratio
Coating density is highly dependent on the proportion of ionized metal species in the plasma.
Low ionization:
High neutral particle content
Low particle energy
Tendency to form porous structures
High ionization (e.g. HiPIMS):
High metal ion fraction
Strong surface mobility
Dense and low-defect film structures
In industrial coatings, differences in ionization ratio directly affect:
Film density
Surface morphology
Long-term stability
2. Energy Input and Substrate Bias Control
Coating deposition is not a “more power is better” process.
It is a delicate energy balance.
If energy is too low:
Weak adhesion
Poor interfacial bonding
If energy is too high:
Excessive internal stress
Risk of microcracking and stress failure
A stable industrial system must provide:
Precisely controlled substrate bias
Real-time energy regulation
Highly repeatable parameters throughout the entire deposition cycle
This level of control comes from hardware architecture and power system design, not from software interfaces alone.
3. Vacuum System Engineering
PVD is fundamentally a vacuum-dependent precision process.
In real production environments, issues such as:
Insufficient pumping speed
Vacuum fluctuations
System contamination
Residual gas interference
will directly manifest as coating defects, including:
Inclusions
Microvoids
Composition instability
Poor repeatability
High-quality PVD systems are not defined by “reaching vacuum”,
but by their ability to maintain a stable, clean, and reproducible vacuum environment over long production cycles.
4. Surface Pretreatment and Interface Engineering
Most coating failures can ultimately be traced back to one root cause:
The interface was not properly engineered.
Typical problems include:
Insufficient surface activation
Residual contamination
Poor interlayer design
Mismatch between surface roughness and coating structure
These issues cannot be corrected after deposition,
but will gradually amplify during service and become failure initiation points.
In industrial systems, pretreatment is not a preparation step —
it is an integral part of the coating process itself.
5. Process Stability and Batch Consistency
Achieving one successful coating in a laboratory is not difficult.
The real challenge is:
Maintaining the same coating performance
across hundreds of production cycles over years.
Industrial users care less about peak performance, and more about:
Parameter repeatability
Process transferability
Batch consistency
Predictable results
These capabilities are determined entirely by system engineering,
not by operator experience.
Why Are Many PVD Coatings Unstable in Practice?
Most real-world failures originate from:
Non-standardized loading structures
Arbitrary parameter adjustments
Insufficient system capacity
Lack of engineering validation
These are not material issues.
They are system-level limitations.
PVD is not a “plug-and-play” technology.
It is a tightly coupled physical system.
Equipment Defines the Upper Limit, System Design Defines the Lower Limit

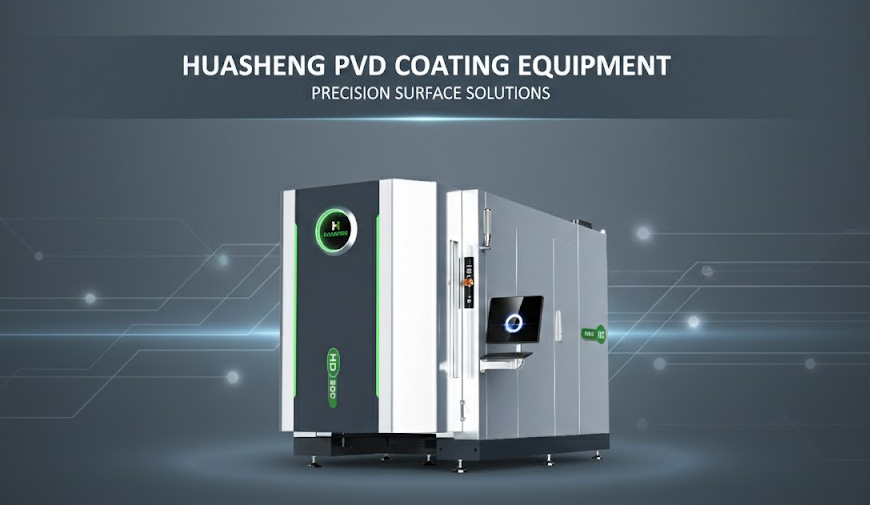

At Huasheng Nanotechnology, the goal of PVD system design is not to chase one-time peak data, but long-term engineering controllability:
Stable plasma generation
Repeatable process windows

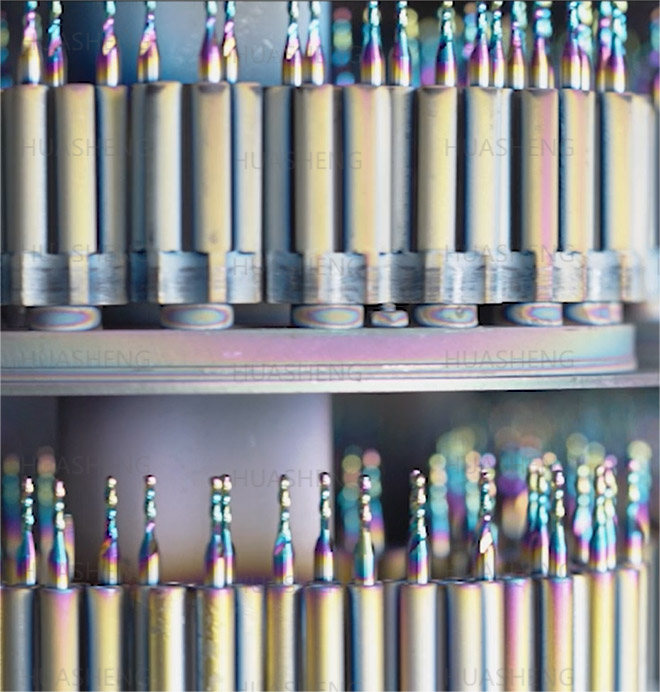

Standardized loading structures
Long-term operational consistency

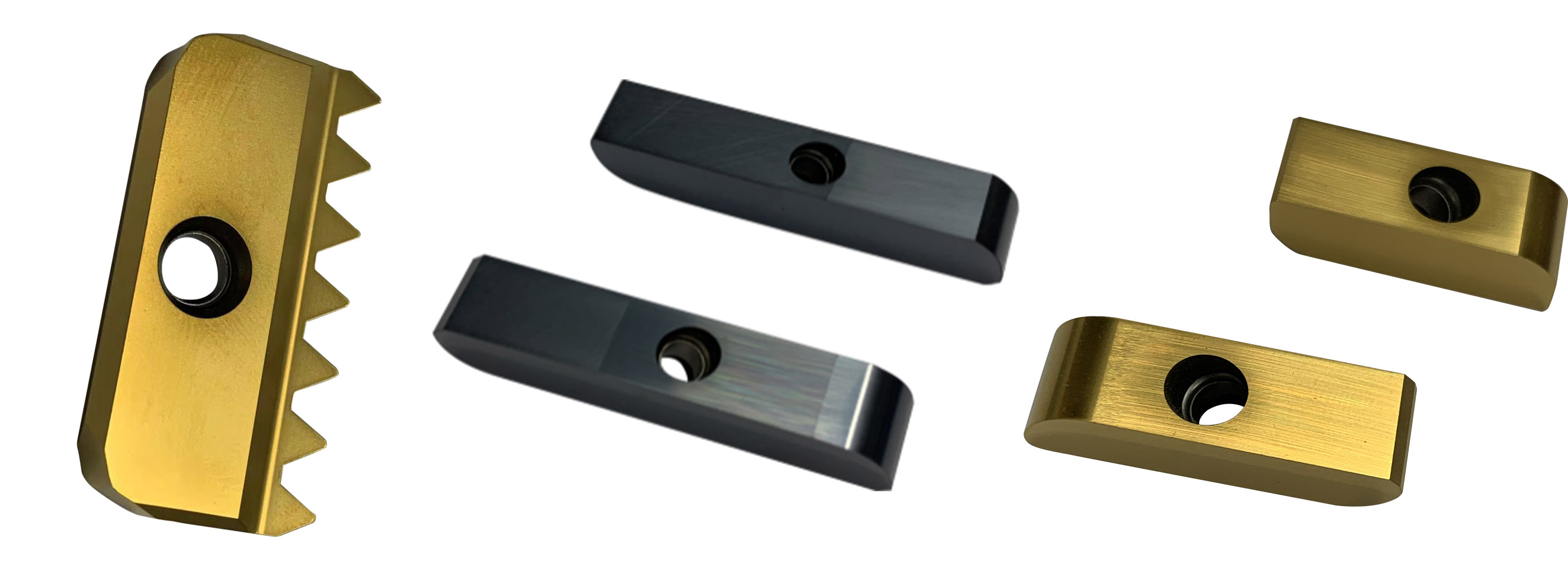

In industrial applications such as cutting tools, wear components, and functional parts,
the same coating material can produce completely different results on different equipment platforms.
Often, equipment performance has a greater impact than coating chemistry itself.
When applied for the right reasons and under the right conditions, DLC can significantly extend service life. When used without considering its limitations, its advantages can be quickly diminished. Understanding both sides is what allows DLC to deliver real value—rather than just impressive specifications.
Final Thought: PVD Is Not the Risk — System Capability Is
When customers ask:
“Is this PVD coating good?”
The more professional question should be:
What system produced it?
Is the process repeatable?
Can the equipment maintain long-term stability?
In modern industrial coating:
Materials define what is theoretically possible
Equipment defines what is practically achievable
System design defines whether it can be sustained
PVD itself is not the limiting factor.
Engineering capability is.
