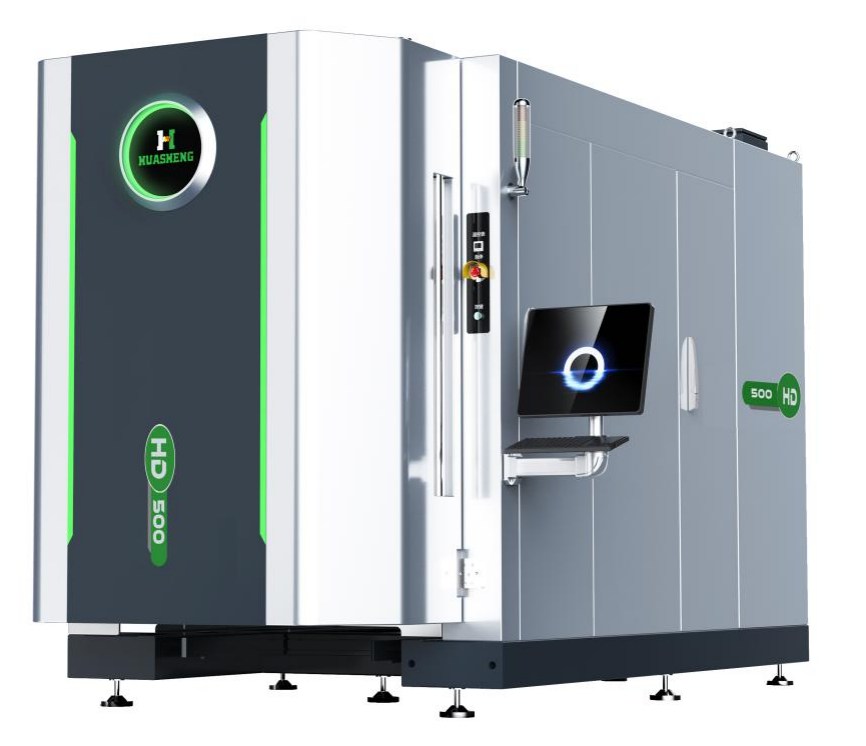

HD500What Is HiPIMS Coating? An Engineer’s Perspective
HiPIMS (High Power Impulse Magnetron Sputtering) is a relatively recent advancement in the PVD coating technology field. While it's often touted as offering better adhesion and denser films, understanding what sets HiPIMS apart requires more than just a glance at its features.
At Huasheng Nanotechnology, we've been using HiPIMS in real-world applications for over a decade. Here's a practical explanation of what HiPIMS is and why it's valuable.
What Is HiPIMS Coating?
HiPIMS is a pulsed sputtering technique that delivers high power in short bursts (microseconds) to the target, compared to traditional DC magnetron sputtering, which uses continuous power.
The key difference is the pulse power – it’s much higher for a short time, but the average power stays at a safe level. This leads to a much higher plasma density and results in a significant increase in the number of ionized particles.
Why Does HiPIMS Produce Better Coatings?

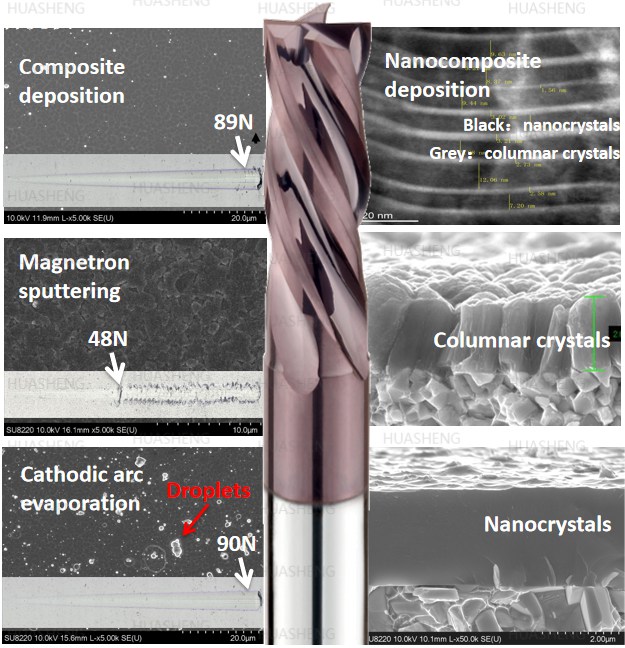

In standard DC sputtering, most of the material reaching the substrate is neutral, with low energy. This can lead to coatings with weaker adhesion and a less dense structure. In contrast, HiPIMS produces a high percentage of ionized particles that are directed towards the substrate with controlled energy.
This ion bombardment helps achieve the following:
- Better adhesion – The ions are attracted to the surface with high energy, improving bonding.
- Denser films – The coating structure is more compact, reducing porosity.
- Fewer defects – The smoothness of the surface improves.

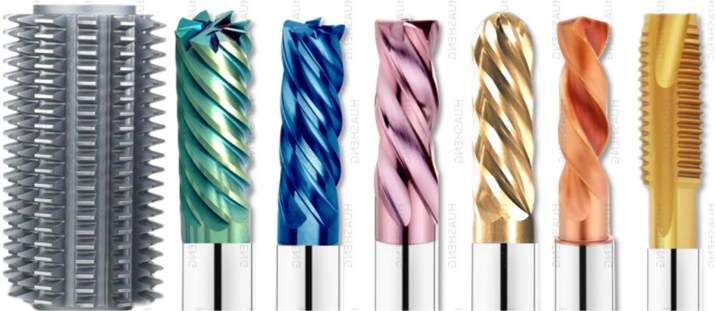

This is why HiPIMS is particularly useful for applications that require high-performance coatings, such as cutting tools, molds, and wear-resistant parts.
HiPIMS vs Conventional Magnetron Sputtering
| Feature | DC Sputtering | HiPIMS |
|---|---|---|
| Plasma density | Low – Medium | High |
| Ionized particles | <5% | 30-70% |
| Film density | Medium | High |
| Adhesion | Good | Excellent |
| Process stability | Wide | More precise |
While HiPIMS offers superior film quality, it's not always the easiest technology to implement. Proper system design, including cathode structure and process control, is essential to fully utilize HiPIMS's potential.
Is HiPIMS the Best Choice for Every Application?
HiPIMS isn't always the right solution for every situation. It's most effective in applications where:
- High adhesion is critical
- The coating must be dense and defect-free
- The part has a complex shape or high aspect ratio
For applications that prioritize cost efficiency or high deposition rates, traditional techniques like arc sputtering or DC sputtering may still be preferable.
That's why combined Arc + HiPIMS systems are becoming popular: they balance high deposition rates with the superior quality of HiPIMS.
Conclusion
HiPIMS is an advanced sputtering technique that brings significant improvements in coating quality. However, its benefits can only be fully realized with the correct system design and process parameters.
At Huasheng Nanotechnology, we focus on engineered solutions that match the specific needs of each customer, ensuring the right balance between coating quality and efficiency.
