What Is Etching? — The Key Step Before PVD Coating
In the PVD coating process, etching is often overlooked but plays a critical role in determining the final coating quality.
Etching uses high-energy ions or reactive particles within a plasma environment to bombard the workpiece surface, effectively removing contaminants, natural oxide layers, and microscopic residues.
In simple terms, it is an “atomic-level surface cleaning” process carried out in a vacuum, ensuring that the substrate is perfectly clean before coating.
Why Etching Matters So Much
The adhesion between the PVD coating and the substrate is one of the most essential performance indicators.
If residues such as oil, polishing paste, oxides, or dust remain on the surface, they act as a barrier layer, severely affecting coating adhesion.
While traditional solvent or water-based cleaning methods can remove most contaminants, they are ineffective against nanometer-scale oxides or residues in micropores.
That’s why etching serves as the final and most crucial pre-treatment step before coating.
It not only physically removes oxide layers but also activates the substrate chemically, enhancing surface energy and promoting stronger bonding with the coating layer.
Common Etching Techniques in PVD Coating
1. Glow Discharge Etching
Uses high-voltage argon ions to bombard the surface and quickly remove oxide films.
Advantages: Simple structure, high efficiency.
Drawbacks: High temperature rise, possible arc discharge, and risk of Ar ion implantation causing interfacial brittleness.
2. Plasma Source Etching
Employs an independent plasma source to generate argon plasma with a lower bias voltage (200–400V).
Advantages: Low heat generation, uniform energy distribution, and reduced arcing — making it one of the mainstream etching technologies today.
3. Reactive Ion Etching (RIE)
Introduces hydrogen or oxygen into argon plasma to remove carbon residues through chemical reactions.
Ideal for DLC coatings or complex-shaped components, as it can clean both deep grooves and sharp corners simultaneously.
4. Metal Ion Etching
Uses metal ions (e.g., Ti, Cr, Zr) released from arc sources to bombard the substrate surface.
Advantages: Fast etching rate and stronger interfacial bonding.
Drawbacks: Higher temperature rise and slightly increased surface roughness.
Choosing the Right Etching Process
Selecting the appropriate etching method depends on material type, coating temperature, equipment configuration, and coating requirements.
For example:
- Cemented carbide or HSS cutting tools often use plasma source argon etching for efficient, low-temperature cleaning.
- Carbon-contaminated surfaces are better treated with reactive ion etching.
- High-temperature molds or heat-resistant components benefit from metal ion etching for improved bonding strength.
Huasheng Nanotechnology’s Etching Expertise
At Huasheng Nanotechnology, we integrate our self-developed PVD systems with precise etching control to achieve a seamless process — from vacuum cleaning to ion etching and multi-arc/magnetron deposition.
By optimizing bias waveform, gas ratio, and ion energy distribution, we ensure strong adhesion while maintaining controlled temperature rise and smooth surface finish, delivering superior coating reliability.

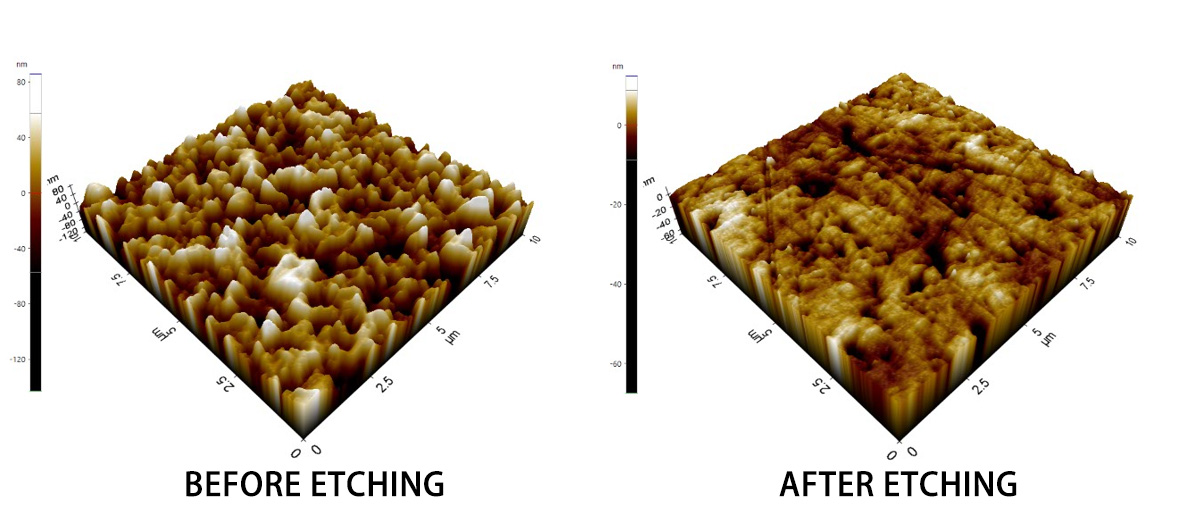

Etching may be invisible, but it defines the future performance of every coating.
At Huasheng Nanotechnology, every unseen step is the foundation of quality.
