Tool coatings play a critical role in improving cutting performance and tool life in modern machining. Once the coating fails, machining accuracy, productivity and cost efficiency are directly affected. This article systematically analyzes the main failure modes of tool coatings—flank wear, rake face wear, and fracture or delamination—and introduces targeted solutions from Huasheng Nano.

1. Flank Wear: The Most Common and Controllable Failure Mode

Flank wear is the most common, controllable and idealized failure mode during coated tool cutting, and is widely used as the primary criterion for tool life evaluation. It is characterized by a uniform wear land along the cutting edge.

The dominant mechanism is abrasive wear, accompanied by oxidation and slight adhesive wear under elevated temperatures. Hard phases such as carbides and oxides in the workpiece produce micro-cutting effects on the coating surface, forming typical ploughing grooves.

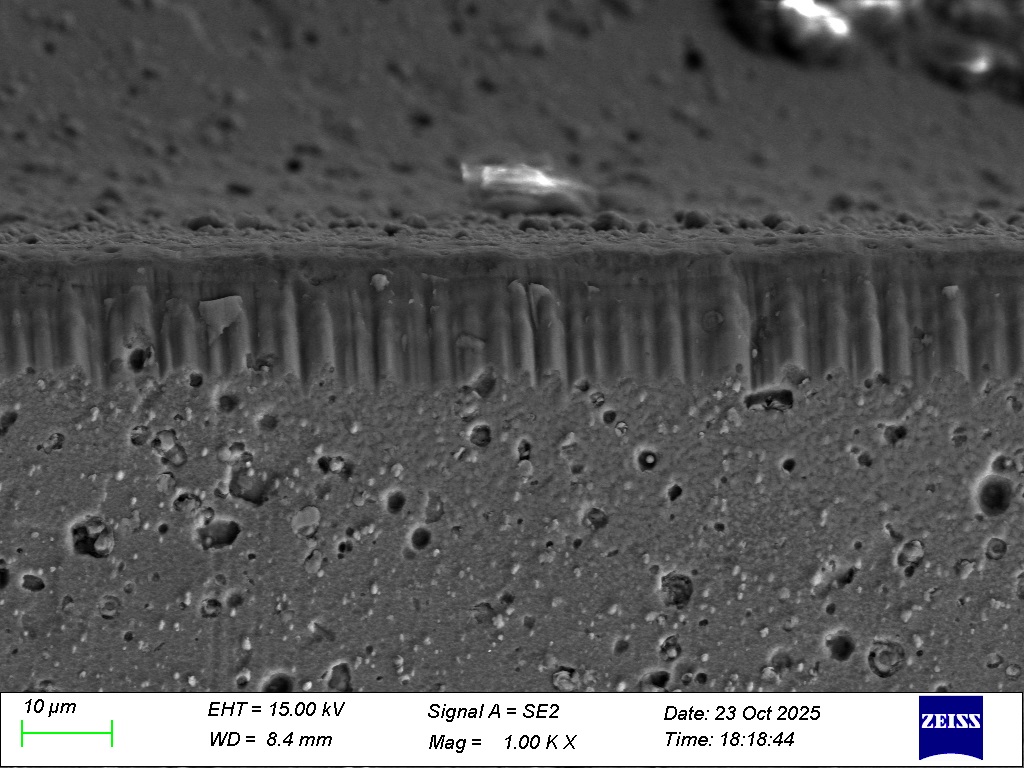

Figure 1. Flank wear morphology of Huasheng Nano HDR-coated tool  after machining DC53 with a cutting length of 200 m

Huasheng Nano Solution:

High-aluminum coatings such as AlTiN and AlCrN are recommended. At high cutting temperatures, these coatings can form an in-situ dense Al₂O₃ protective layer, effectively suppressing oxidation and diffusion wear. Nano-multilayer and nanocomposite structures (e.g., nc-AlTiN/a-Si₃N₄) further enhance wear resistance by refining grains and blocking crack propagation.

2. Rake Face Wear: Dominated by Diffusion and Adhesive Mechanisms

During high-speed dry machining or cutting of difficult-to-machine materials such as stainless steel and titanium alloys, local rake face temperatures may reach 800–1000 °C. Under these conditions, turning inserts typically exhibit crater wear dominated by diffusion and adhesion, while end mills often show groove-like abrasive wear.

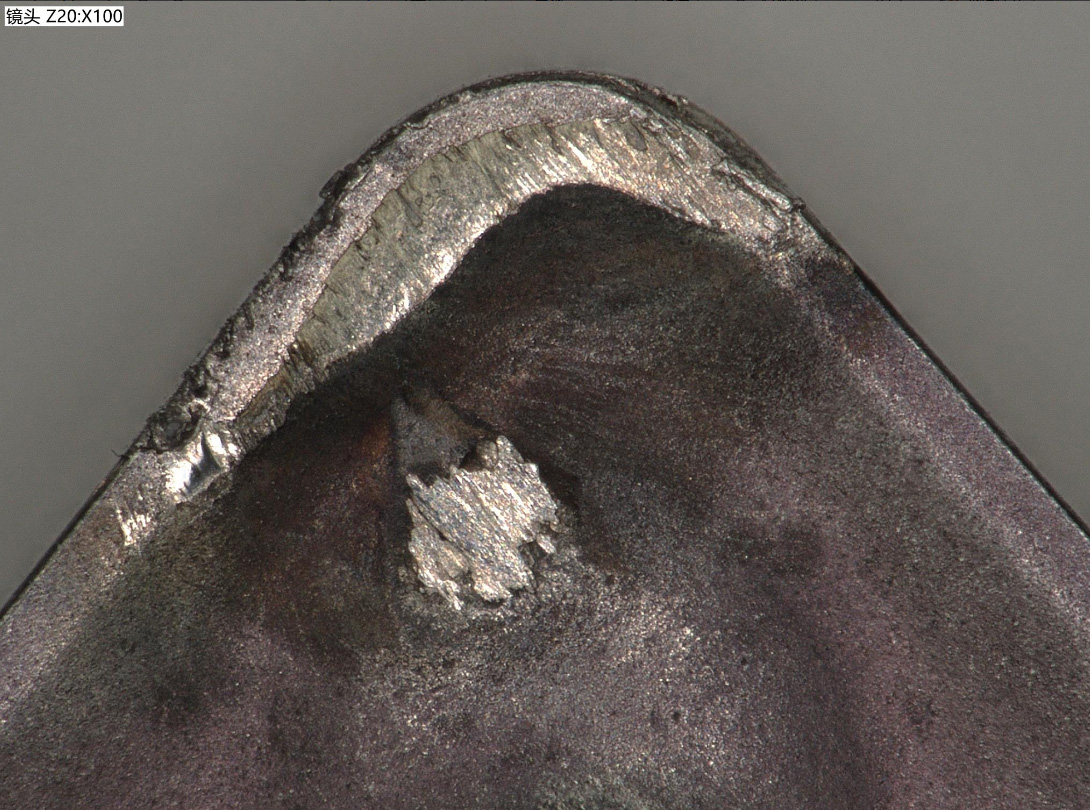

Figure 2. Crater wear morphology on the rake face of a turning insert

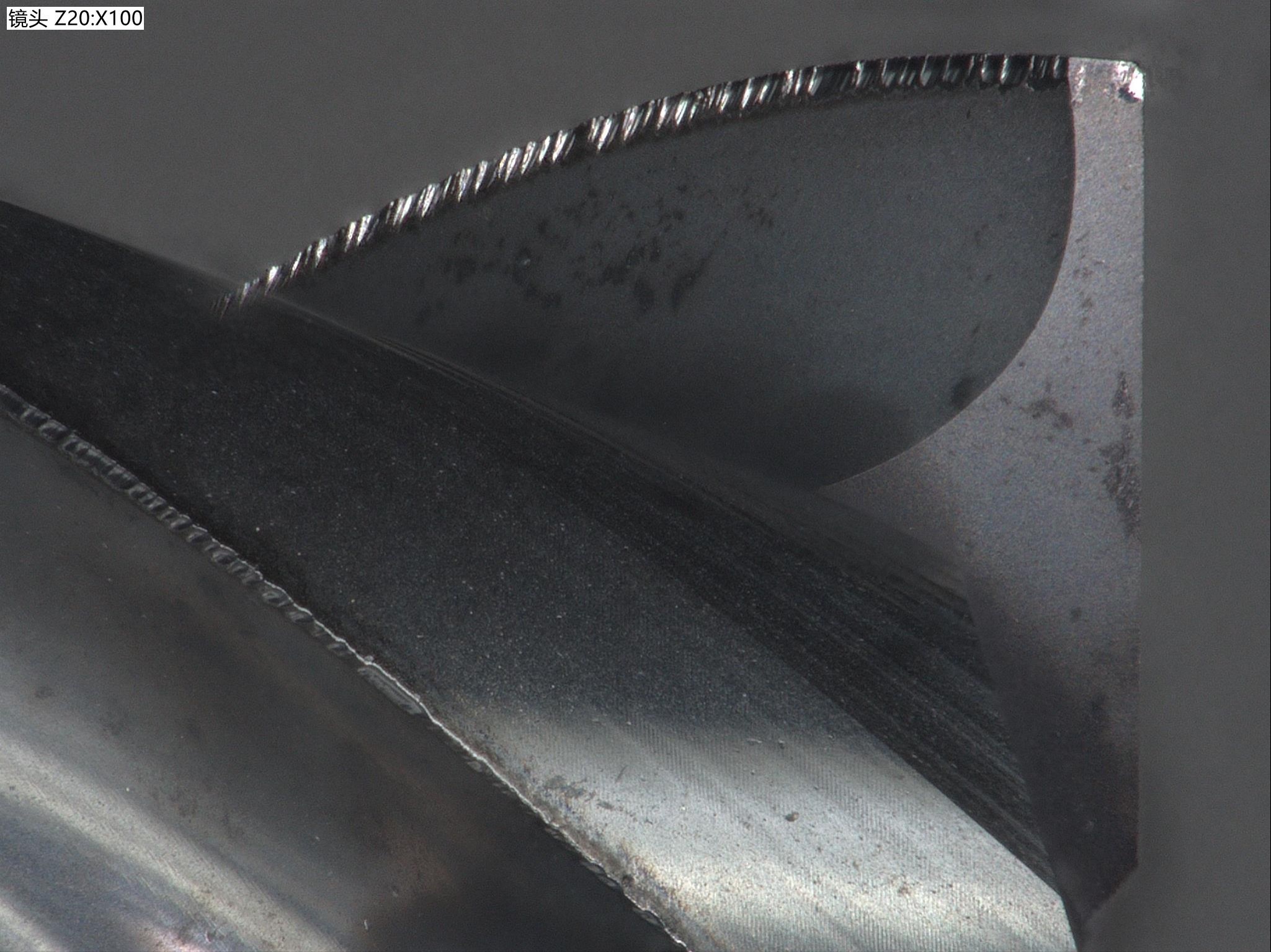

Figure 3. Rake face wear morphology of a flat end mill

Huasheng Nano Solution:
By optimizing PVD parameters to reduce droplet density and improve surface quality, adhesive wear can be significantly mitigated. Enhancing step coverage during etching and deposition ensures denser coatings on rake faces. For stainless steel machining, adding elements such as Zr, Si and Nb into the coating composition markedly improves anti-adhesion performance.

3. Fracture and Delamination: The Importance of Adhesion and Thickness Control

From the coating perspective, tool fracture is frequently related to coating delamination and abnormal thickness. Once the coating peels off, the substrate is directly exposed to extreme cutting conditions, resulting in rapid wear or catastrophic failure. Excessive coating thickness on reground tools can also induce brittle fracture.

Huasheng Nano Solution:
With tungsten-wire etching (WET) technology, Huasheng Nano achieves scratch critical loads above 100 N on typical cemented carbide substrates, greatly enhancing coating adhesion. Industrial experience shows that nearly 80% of delamination risks originate from improper pre-cleaning, therefore strict sand-blasting and oxide-removal processes are essential.

Figure 4. AFM surface morphology of the tool after Huasheng Nano WET etching

Conclusion

Tool coating failure is a complex interaction of materials, mechanics and chemistry. By understanding the mechanisms of flank wear, rake face wear and fracture or delamination, and by leveraging Huasheng Nano PVD vacuum coating machines with advanced interface engineering and microstructural control, long tool life and high reliability can be effectively achieved.
