HD500TiN Coating in Cutting Tools: Why Tapping Remains the Most Typical Application
TiN coating, also known as Titanium Nitride coating, is one of the most widely used PVD hard coatings in metal cutting tools. Recognized by its golden appearance, high surface hardness, and stable wear resistance, TiN has been applied across various tooling categories for decades.
Although advanced multi-layer and composite coatings have emerged in recent years, TiN remains a mainstream solution, especially for basic tools such as taps, drills, and end mills.

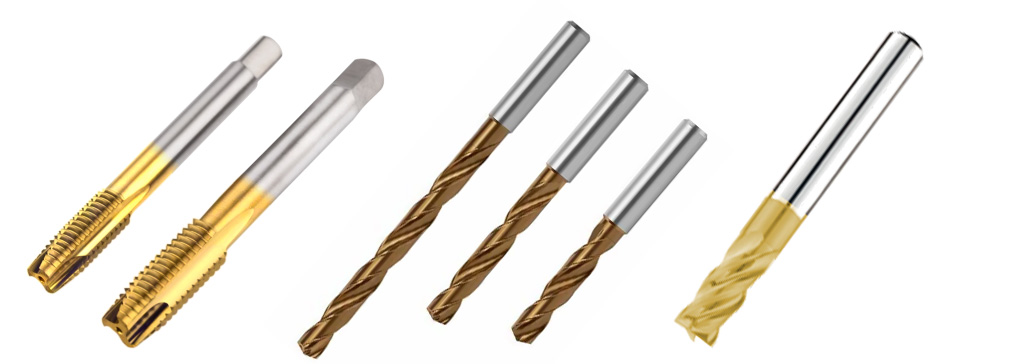

But what tools is TiN actually suitable for? Do different tools benefit from TiN in the same way? And why is tapping often considered the most representative application?
TiN coating, also known as Titanium Nitride coating, is one of the most widely used PVD hard coatings in metal cutting tools. Recognized by its golden appearance, high surface hardness, and stable wear resistance, TiN has been applied across various tooling categories for decades.
Although advanced multi-layer and composite coatings have emerged in recent years, TiN remains a mainstream solution, especially for basic tools such as taps, drills, and end mills.
But what tools is TiN actually suitable for? Do different tools benefit from TiN in the same way? And why is tapping often considered the most representative application?
What is TiN Coating?
TiN coating is a ceramic thin film deposited on tool surfaces through PVD processes. Its primary functions are to increase surface hardness, reduce friction, and slow down wear during cutting operations.
From an industrial perspective, TiN is regarded as a classic and highly mature coating system. Rather than pursuing extreme performance, it focuses on stability, reliability, and production consistency.
Magnetron sputtering
Arc PVD
High Power Impulse Magnetron Sputtering (HiPIMS)
Hybrid and multi-source PVD systems
These systems differ fundamentally in equipment structure, plasma characteristics, energy input methods, and process controllability.
Therefore, saying “they are all PVD” has very limited technical meaning.
What really matters is which PVD system is being used, and how that system is engineered.
Why Is TiN Still Widely Used Today?
Despite the availability of newer coatings such as AlTiN or CrN, TiN continues to be widely adopted for three main reasons:
Highly stable and repeatable coating process
Cost-effective for large-scale tool applications
Good compatibility with common steels and cast iron materials
In many production environments, TiN is not chosen because it is the most advanced, but because it is the most predictable.
Typical Tools for TiN Coating
TiN coating is not limited to taps. It is commonly applied to:
- Taps
- Drills
- End mills
- Reamers
- Turning inserts
These tools operate under friction, heat, and mechanical stress, and TiN acts as a protective working surface that enhances durability across these conditions.
Different Tools, Different Performance Focus
Although the coating material is the same, the functional value of TiN varies by tool type:
On drills: delaying edge wear and improving hole consistency
On end mills: maintaining cutting edge shape and surface quality
On reamers: enhancing surface finish and dimensional stability
On inserts: providing basic wear protection
On taps: resisting wear, torque impact, and maintaining threading accuracy
Because tapping combines high friction, high torque, and low tolerance for failure, TiN demonstrates its most comprehensive value on taps.
Why TiN Is Especially Suitable for Tapping
Taps are among the highest-risk cutting tools. A single failure may damage the workpiece or even the machine. Therefore, the main requirements for tap coatings are:
Stable wear resistance
Consistent friction behavior
Controlled internal stress
Reliable long-term performance
TiN coating offers a balanced solution across all these factors, making it one of the most widely used and trusted coatings in tapping applications.
Real Case: Tap Before and After TiN Coating
In the following video, the same tap is shown before and after TiN coating.
While the golden appearance remains similar, the coated tool demonstrates improved cutting stability and more predictable wear behavior during actual tapping operations.
Huasheng Nanotechnology TiN Solution
At Huasheng Nanotechnology, TiN coating is designed for real production environments, focusing on adhesion strength, coating stability, and batch consistency rather than extreme laboratory performance.
This approach allows Huasheng TiN coating to deliver reliable results in tapping, drilling, and other cutting tools for P-class steels and K-class cast iron materials.
