More Efficient Steel Machining with Huasheng HAE Coating

Introduction: Challenges in Steel Machining

Steel is one of the most widely used materials in the world of mechanical engineering. From bolts, bearings, and gears to shafts, molds, and heavy-duty structures, steel provides the backbone for modern industry. While steel offers excellent strength, toughness, and cost-effectiveness, it also brings significant machining challenges. Variations in hardness, toughness, and surface properties across different steel grades can drastically impact cutting tool life, efficiency, and overall production costs.

This is where Huasheng's HAE Coating, based on advanced Arc PVD technology, provides a universal and reliable solution for machining steel components.

Why Steel Machining Requires Advanced Coating Technology

In practical machining, end-users rarely work with a single, uniform type of steel. Instead, they often need to cut multiple steel grades, ranging from medium carbon steel (C45) to high-hardness tool steel. This variation forces tool users to either:

● Accept rapid tool wear, or

● Continuously switch to specialized cutting tools

Both approaches increase costs and reduce efficiency. Cutting tool manufacturers recognize this challenge and agree that the future of tool performance lies in the synergy of substrate, coating, and geometry design, rather than relying on isolated improvements.

Huasheng addresses this industry pain point with the HAE Coating, engineered for versatility and durability.

Huasheng HAE Coating: A More Versatile Solution

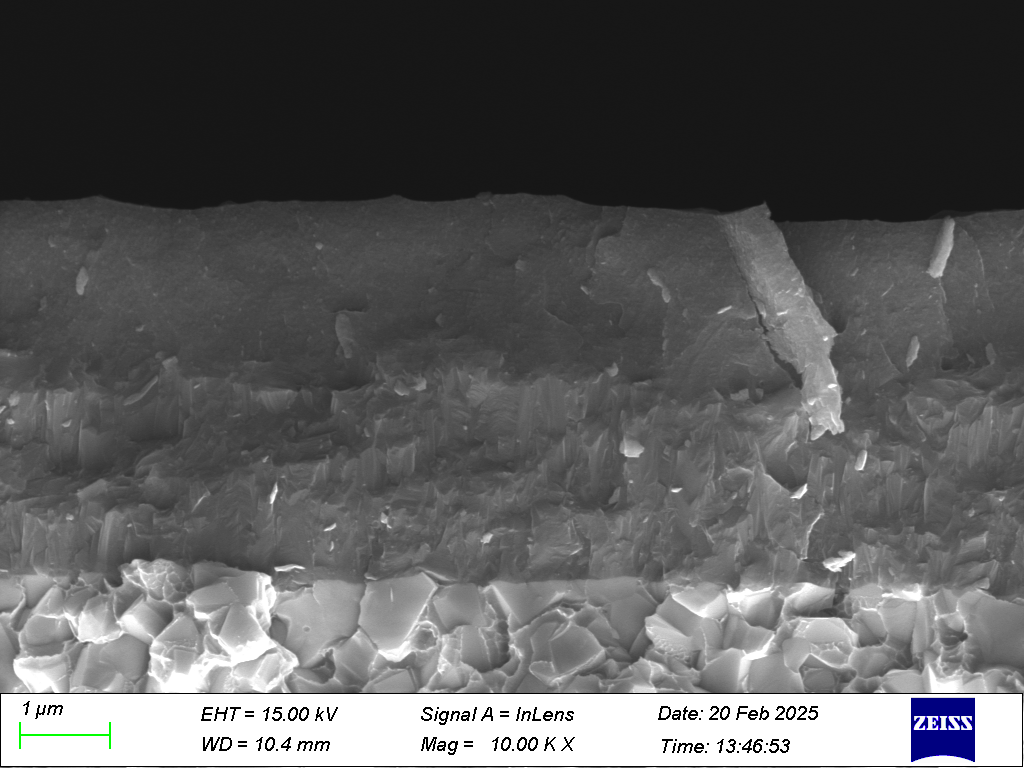

The HAE Coating (CrAlN + CrAlSiN) is developed specifically for machining different types of steel, offering:

Enhanced Wear Resistance: The AlCrN-based structure provides excellent toughness and resistance to mechanical impact.

Oxidation Protection: The added Si element refines grain size, improving oxidation resistance and reducing abrasive wear.

Extended Tool Life: Balanced coating design ensures strong performance under both continuous and interrupted cutting conditions.

Wide Application Range: Suitable for carbon steel, alloy steel, tool steel, and high-hardness steels, making it a true universal coating for steel machining.

Real-World Test Results

Huasheng’s HAE Coating is backed by extensive performance testing:

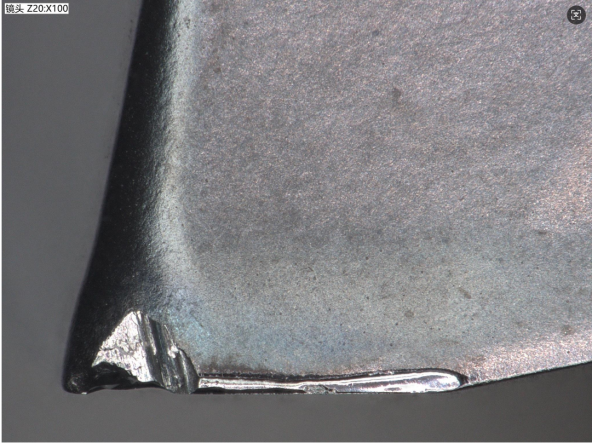

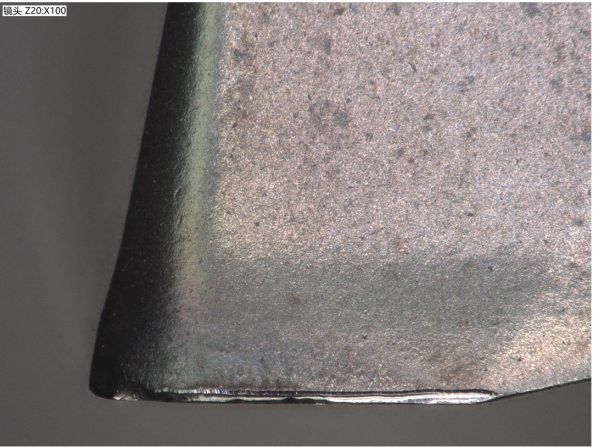

Medium Carbon Steel (C45):

After 6 hours of machining under identical conditions, tools with CrAlN coating showed 325 μm wear, while HAE-coated tools showed only 221 μm wear – a reduction of more than 30%.

Tool Steel (45 HRC):

CrAlN-coated tools processed 47 workpieces, whereas HAE-coated tools processed 73 workpieces under the same test conditions – delivering nearly 70% higher productivity.

These results demonstrate how HAE Coating helps manufacturers increase efficiency, lower costs, and maximize tool performance in demanding steel machining environments.

Applications in the Automotive and Engineering Industries

Different automotive parts, such as gears, shafts, and precision components, are produced from various grades of steel. By applying Huasheng’s HAE Coating, manufacturers can:

Expand the range of machinable materials with one tool

Improve tool life in mixed-material production

Reduce downtime caused by frequent tool changes

This versatility makes HAE Coating a preferred choice not only in the automotive industry but also in mold-making, heavy machinery, and general engineering.

Conclusion: Driving the Future of Cutting Tool Technology

Huasheng continues to innovate by providing universal solutions for the machining industry. The HAE Coating, powered by Arc PVD technology, is a prime example of how coating design can overcome steel machining challenges.

With proven test results, strong industrial applications, and an engineering-first approach, Huasheng positions itself as a trusted partner for cutting tool manufacturers worldwide.
