Introduction to Arc Ion Plating (AIP) and Its Applications in Tool Coatings

Arc Ion Plating (AIP) is one of the most important branches of Physical Vapor Deposition (PVD) technology.
Renowned for its high ionization rate, fast deposition speed, and excellent film–substrate adhesion, AIP has become a cornerstone in the field of functional coatings for tools and molds.
Its principle is based on vacuum arc discharge theory: under vacuum conditions, an electric arc forms between the cathode target and anode, causing the target material to evaporate, ionize, and deposit as a coating on the substrate under a negative bias voltage.

1. Technical Principle and Features

The core of AIP lies in the cathodic arc discharge process.
When the chamber pressure reaches 10⁻³–10⁻¹ Pa, and a current of several tens of amperes with a voltage of several tens of volts is applied, tiny high-energy arc spots appear on the cathode surface.
These spots travel randomly across the target at speeds of tens to hundreds of meters per second, with current densities up to 10⁶–10⁸ A/cm², causing localized melting, evaporation, and high ionization of the target material.
The resulting plasma consists of metal ions, atoms, and electrons.

One of AIP’s greatest strengths is its extremely high ionization rate (60%–90%), far exceeding that of magnetron sputtering.
This allows coating particles with energies between 10–100 eV to be accelerated by the substrate bias voltage (−30 to −1000 V), providing a sputtering-cleaning effect and forming a dense, well-adhered coating.

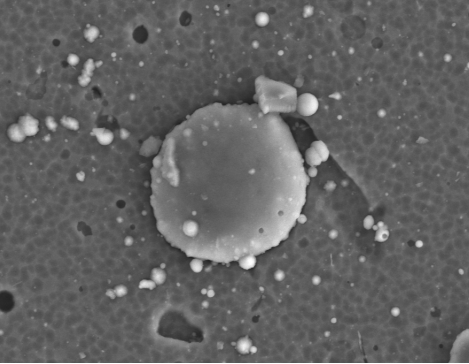

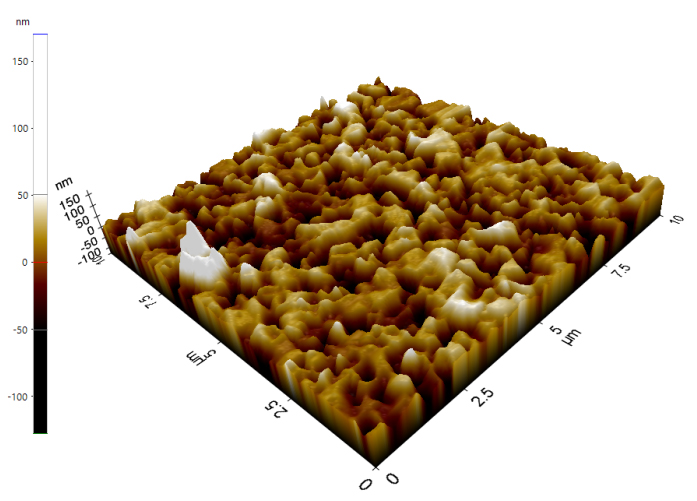

However, AIP inevitably generates “droplets” — microscopic molten particles ejected from the target material — which increase surface roughness and may cause coating defects.
To solve this, small-arc source and magnetic filtering technologies have been developed, effectively separating droplets from plasma and greatly improving coating quality.

2. Process Parameters and Coating Performance

AIP involves multiple parameters, such as target current, substrate bias voltage, working pressure, and deposition temperature.

Target current affects evaporation rate and plasma density.

Bias voltage determines ion bombardment energy, influencing film structure and internal stress.

Working pressure impacts plasma behavior and particle mean free path.

By adjusting these parameters, different coating microstructures can be obtained:

Lower bias (−50 to −60 V) produces columnar structures,

Higher bias (−80 to −200 V) forms dense equiaxed grains with superior compactness.

Elemental doping is another key tuning method:

Aluminum (Al) promotes formation of dense Al₂O₃, enhancing wear and oxidation resistance.

Silicon (Si) leads to nanocomposite coatings (Si₃N₄-amorphous phase wrapping crystalline grains), improving hardness, wear resistance, and thermal stability.

3. Applications in Cutting Tool Coatings

Tool coating is the most mature and widespread application of Arc Ion Plating.
It covers three main categories:

(1) Insert Coatings

Including turning inserts, milling inserts, and grooving inserts, optimized for roughing, semi-finishing, and finishing operations — particularly on stainless steel.
Different coating types are chosen for continuous or interrupted cutting.
Representative coatings include Huasheng Nanotechnology’s SS330 and HMT130 processes.

(2) Shank Tool Coatings

Including end mills, drills, and taps.

• Milling cutters:

For soft steels → AN510 Pro (Huasheng Nanotechnology)

For general use → HLM300

For hardened steels → HDR, HDU

• Drills:

General-purpose → HPD130

High-hardness, high-speed drilling → HPD124

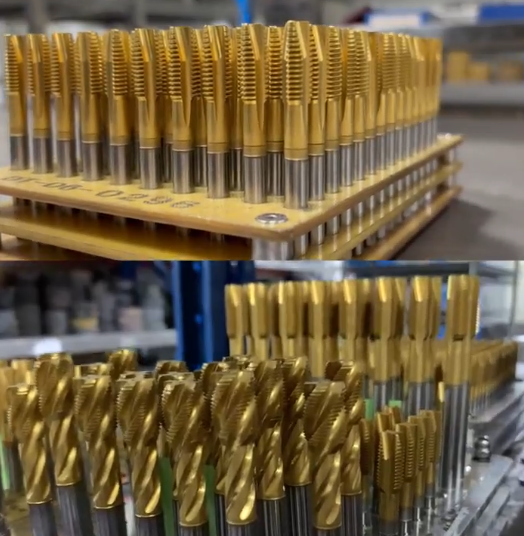

• Taps:

Mainly TiN coatings, with limited applications of TiCN and others.

(3) Special-Shape Tool Coatings

Including hob cutters, gear shaper cutters, saw blades, and bandsaw tools.
For these, pre- and post-coating treatments (e.g., stripping, cleaning, sandblasting, passivation) are essential to ensure consistent coating quality.

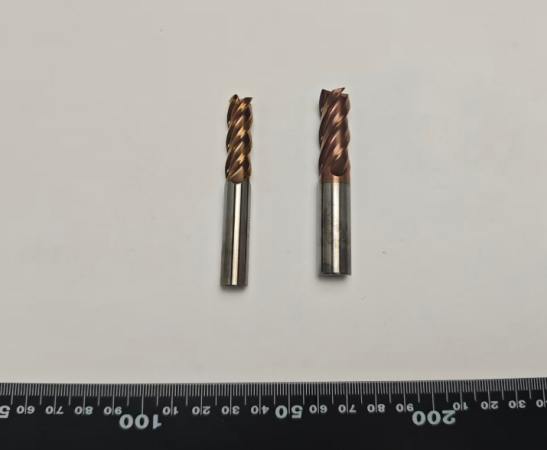

Typical process: Huasheng Nanotechnology’s HAE series coatings.

4. Technological Development and Future Trends

AIP technology is evolving toward integration, intelligence, and hybridization.

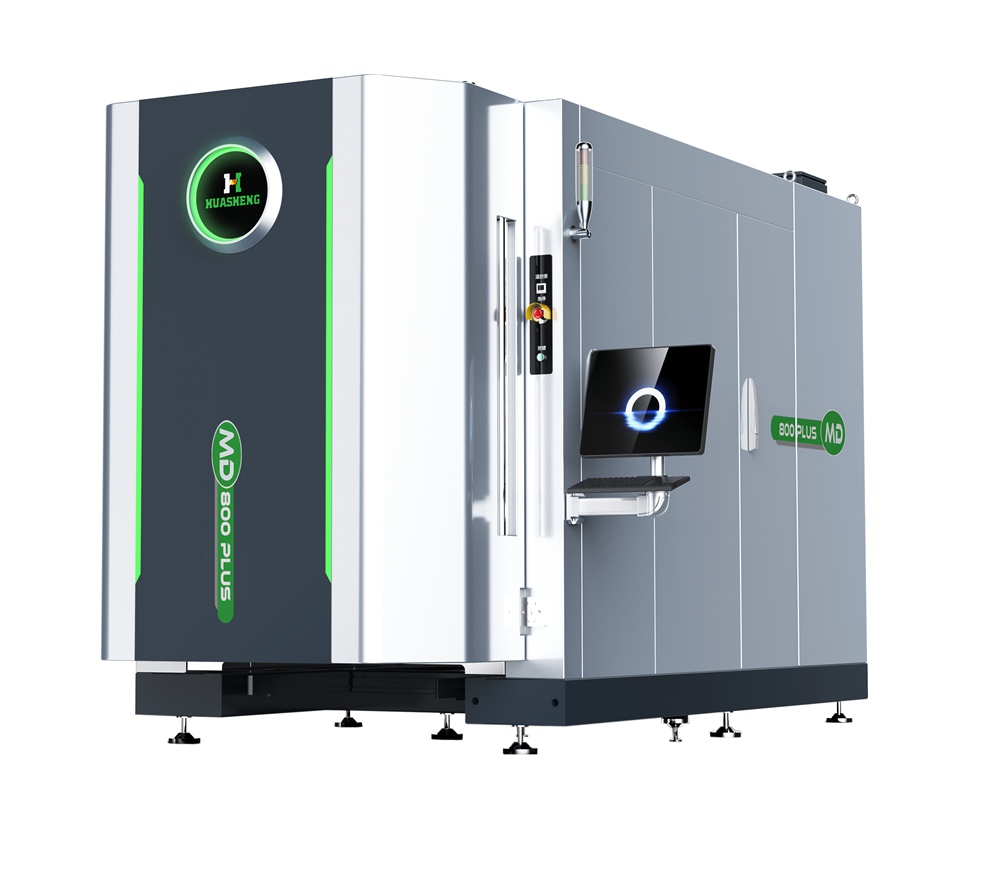

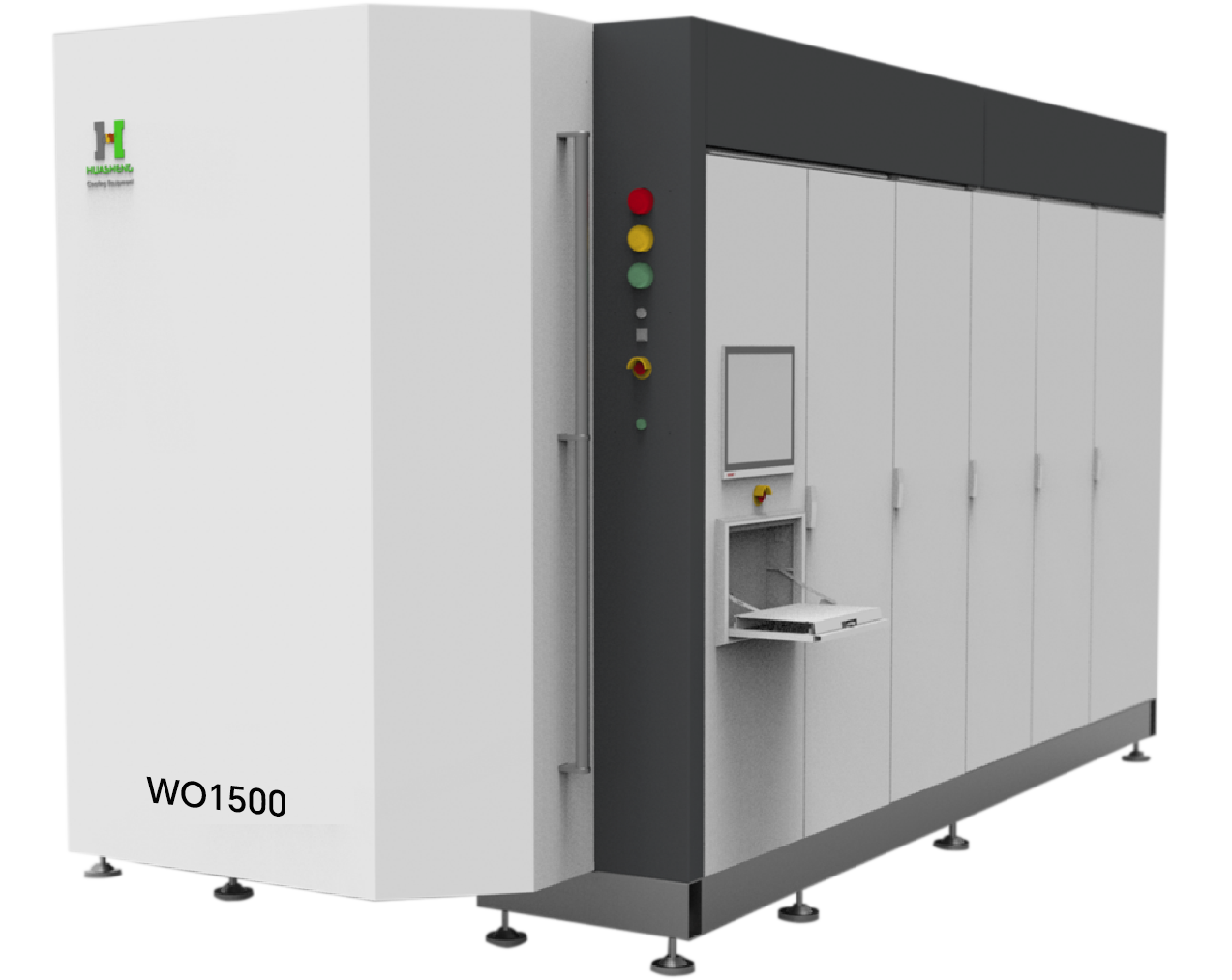

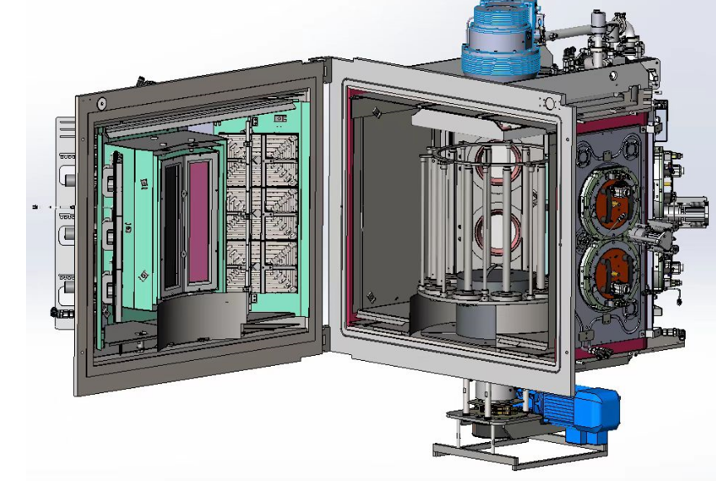

Multi-arc source systems (e.g., Huasheng MD800 PLUS, WO1500 arc coating machines) achieve uniform film deposition on complex tool geometries.

Pulse bias technology (e.g., Huasheng G4 hybrid system) effectively reduces internal stress.

Arc + magnetron hybrid coating systems (e.g., Huasheng HD500) combine high ionization with low droplet generation, achieving superior surface quality.

Meanwhile, emerging high-entropy alloy coatings and nano-multilayer structures are extending the boundaries of AIP applications in high-end manufacturing.

Conclusion

As a mature and versatile surface engineering technology, Arc Ion Plating (AIP) continues to play an irreplaceable role in enhancing product performance and saving strategic materials.
Its ongoing innovation will keep driving the advancement of high-end precision manufacturing.
