Huasheng Nanotech DLC Coating for Advanced Hydraulic Shafts

In the rapidly expanding industries of wind power and new energy vehicles (NEVs), surface coating has become a key technology for improving the performance of core components. As a crucial factor in reducing costs and improving efficiency, coating technology plays an increasingly vital role in the green transformation of the new energy sector.

Among these components, the hydraulic shaft, known as the “power transmission core” of new energy drive systems, requires superior surface wear resistance, corrosion protection, and environmental compatibility. These coating properties directly determine the overall system reliability and maintenance costs.

Huasheng Nanotechnology, leveraging its self-developed DLC (Diamond-Like Carbon) coating technology, has created customized coating solutions specifically for hydraulic shafts. These coatings not only solve the pain points of traditional surface treatment but have also become one of the most recognized and high-quality technical solutions in the field of vacuum coating technology.

DLC Coating Performance under Harsh Operating Conditions

As new energy equipment continues to develop toward larger scale and higher precision, hydraulic shafts face increasingly severe working environments. The coating requirements have shifted from basic protection to performance customization.

Take the wind turbine pitch system as an example: the hydraulic shaft must operate under extreme temperature variations from -30°C to 60°C, in high-salt and outdoor conditions, performing more than 100,000 reciprocating movements annually. Traditional chrome coatings (with hardness only HV800–1000) often fail due to wear and corrosion within 6–8 months, with each replacement costing over 10,000 RMB.

In new energy vehicle braking systems, hydraulic shafts are subjected to instant high-pressure shocks in confined spaces. Conventional coatings are prone to peeling, causing delayed braking response and serious safety risks.

“We had tried multiple coating options before, but they either lacked sufficient wear resistance or failed environmental standards,” said a maintenance manager from a wind turbine manufacturer. “It wasn’t until we used Huasheng Nanotechnology’s DLC coating that we finally resolved our ‘service life anxiety’ for hydraulic shafts.”

Technical Advantages of Huasheng DLC Coating

Why has DLC coating become the preferred choice for hydraulic shafts in new energy applications?

The answer lies in its precise compatibility with the shaft’s demanding working environment—and Huasheng has further optimized this through advanced material engineering.

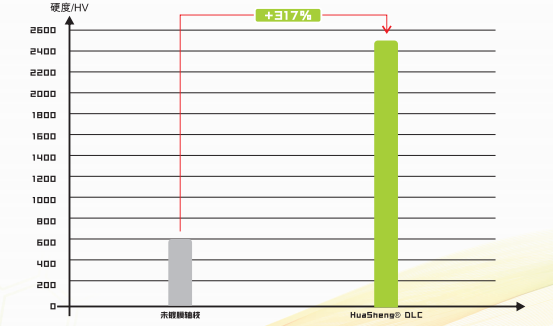

Huasheng’s DLC coating adjusts the sp³ bond ratio to achieve a hardness of up to 2500HV, which is 2–3 times higher than that of traditional chrome coatings. Its low friction coefficient (0.1) is about 20% of chrome plating, while the adhesion strength reaches HF1–HF2 grade.

This combination significantly reduces frictional wear between the shaft and sealing components, effectively doubling the service life of seals and extending the hydraulic shaft lifespan from 6–8 months to 36–48 months.

Testing by a leading new energy vehicle manufacturer showed that the wear volume of DLC-coated shafts was only one-fifth that of conventionally coated ones—demonstrating a remarkable improvement in both durability and reliability.

Integrated Solutions: Equipment + Process + Service

As a company specializing in both coating equipment manufacturing and surface treatment services, Huasheng Nanotechnology provides more than just a DLC coating product.

It has established a comprehensive “Equipment + Process + Service” support system tailored to hydraulic shaft coating applications.

This integrated model is the key reason Huasheng stands out in the vacuum coating industry—customers not only gain premium coating technology but also receive end-to-end, turnkey coating solutions.

With the continuous evolution of new energy equipment toward higher power density and longer service life, hydraulic shaft coating technologies will continue to advance. In the future, solution providers like Huasheng Nanotechnology, who integrate coating equipment, process development, and technical service, will play a leading role in promoting greener, longer-lasting, and more efficient transmission systems across the global new energy sector.
