How to Troubleshoot PECVD Vacuum Coating Equipment Failure in Metal Surface Treatment

In modern metal surface treatment, PECVD (Plasma Enhanced Chemical Vapor Deposition) technology plays a vital role in forming high-performance vacuum coatings and nanocoatings with excellent hardness, adhesion, and corrosion resistance. However, during long-term production, the PECVD vacuum coating system may sometimes fail to start. Understanding the root causes and following a structured troubleshooting process can help quickly restore stable coating performance and avoid costly downtime.

1. Common Causes of PECVD System Failure

A PECVD system failure is usually related to one or more of the following six modules:

• RF Power Supply Issues – No RF output or a damaged matching network capacitor prevents plasma ignition.
• Vacuum Pumping Problems – The system cannot reach base pressure due to foreline pump malfunction or chamber leakage, triggering a safety lock.
• Gas Flow Control Errors – The Mass Flow Controller (MFC) may experience zero drift, causing the gas flow to drop to zero and activating interlocks.
• Cooling System Failure – If the water flow switch is open or the pressure is below 0.3 MPa, the machine enters overheat protection.
• PLC or Interlock Signals Not Reset – An unreset emergency stop or door lock signal can block system startup.

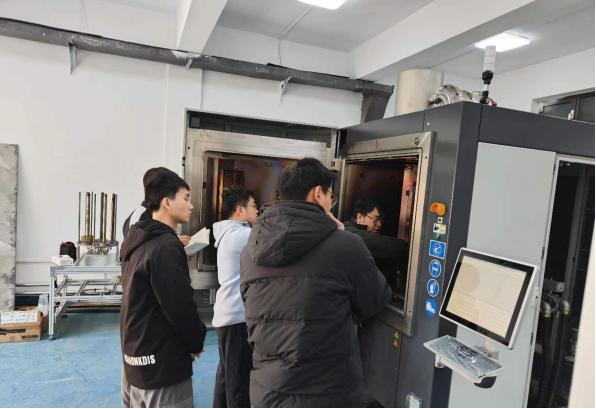

• Power Supply or Fuse Damage – A blown fuse in the target power or DC source leads to loss of process voltage and plasma instability.

2. Step-by-Step Troubleshooting Process

• To restore normal operation, follow this order:
• Reset the emergency stop and ensure all chamber doors are properly closed.
• Check cooling water pressure (≥0.3 MPa).
• Perform leak detection using a helium mass spectrometer to confirm a leak rate below 1×10⁻⁹ Pa·m³/s.
• Calibrate the MFC zero point and replace any blown fuses.
• Monitor RF reflection power; if it exceeds 10 W, re-tune the matching network.
• If startup still fails, use an oscilloscope to check the RF power transistor gate waveform—replace faulty components immediately.

3. Ensuring Reliable Vacuum Coating Performance

Following the above procedure allows engineers to identify faults in a short time, restore plasma glow discharge, and resume nanocoating production. Proper maintenance of the vacuum coating equipment, regular calibration of sensors, and inspection of gas flow and power systems are essential to prevent large-scale product scrap.

At Huasheng Nanotechnology, we specialize in advanced PECVD coating systems and metal surface treatment solutions that ensure consistent coating quality, uniform film deposition, and extended equipment lifespan. By maintaining precise process control, our vacuum coating technology helps clients achieve stable and efficient nanocoating production across a wide range of industrial applications.
