Ultra-Thick, High-Toughness U2 Coating for Heavy-Duty Applications

In heavy-duty machining fields such as civil aviation, energy equipment, and heavy-duty vehicles, tool failure has long been a major bottleneck restricting manufacturing efficiency. Under heavy cutting loads, the cutting force can reach 3–5 times that of standard machining, while the cutting zone temperature may spike to 800–1200℃. Combined with abrasive wear and adhesion wear, conventional tool coatings often suffer from edge chipping and peeling in a short time. This not only increases tool replacement cost, but also risks scrapping high-value workpieces.

With deep technical accumulation in metal surface engineering and supported by independently developed vacuum coating equipment and PVD technology, Huasheng Nanotechnology introduces the U2 heavy-duty machining coating. This solution achieves a dual breakthrough: a stable 6μm ultra-thick coating coupled with enhanced toughness, providing a new performance standard for high-end tool coatings.

1. Extreme Operating Conditions: The “Three Highs” of Heavy-Duty Machining

Heavy-duty machining is far more than “high-strength cutting”—its working conditions impose extreme demands on coatings.

1. High-load impact: During machining of large components such as wind flange seats or nuclear pressure vessels, tools must withstand cyclic impact loads. Conventional coatings tend to crack due to insufficient toughness.
2. High-temperature oxidation: When machining materials like Inconel 718 or titanium alloys, temperatures may exceed 1000℃.
3. Complex wear mechanisms: Graphite particles in cast iron increase abrasive wear, while adhesion during stainless steel machining accelerates coating delamination.

These “three highs”—high load, high temperature, and high wear—make heavy-duty machining coatings a technological frontier in the industry.

2. Five Core Requirements for Heavy-Duty Machining Coatings

Based on operating conditions, an effective coating must offer:

• Ultra-thick layer to withstand long-term wear
• High hardness and wear resistance
• Strong impact resistance balancing hardness and toughness
• High coating–substrate adhesion strength to avoid thermal peeling
• Low residual stress to prevent cracking during operation

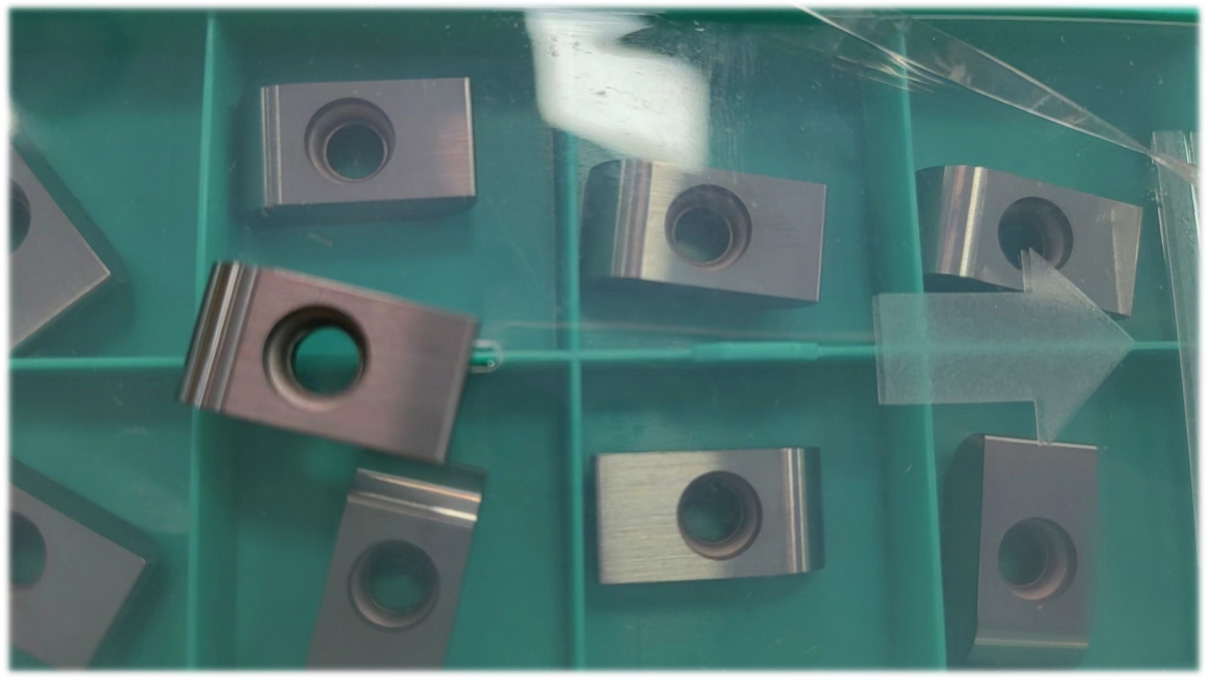

Although these requirements often contradict each other—e.g., thicker layers typically bring higher internal stress, and higher hardness often sacrifices toughness—Huasheng Nanotechnology achieves functional balance in the U2 coating through innovative PVD engineering.

By precisely controlling ion energy, deposition temperature, and target composition during vacuum coating, the U2 coating forms a nano-multilayer architecture, enabling high hardness while retaining toughness.

3. U2—A Heavy-Duty Solution Fueled by Advanced PVD Technology

As a key innovator in metal surface coating technology and vacuum coating equipment manufacturing, Huasheng Nanotechnology lays the technical foundation for the U2 breakthrough.

Using a multi-target synchronized deposition system, U2 achieves a stable 6μm coating thickness, significantly higher than the industry-standard 3–4μm range. Through graded material structuring, residual stress is controlled within ≤5 GPa, solving the long-standing challenge where ultra-thick coatings easily crack or delaminate.

While retaining high hardness, U2 also enhances coating toughness and ensures superior adhesion strength—making it highly suitable for extreme loading scenarios in heavy applications.

4. Future Direction: Toward Greener and Smarter Coating Technology

With manufacturing shifting toward efficiency and sustainability, the development path of heavy machining coatings is increasingly clear.

Huasheng Nanotechnology has already begun advancing toward:

• Energy-efficient coating systems
• Eco-friendly production strategies
• AI-assisted intelligent vacuum coating control

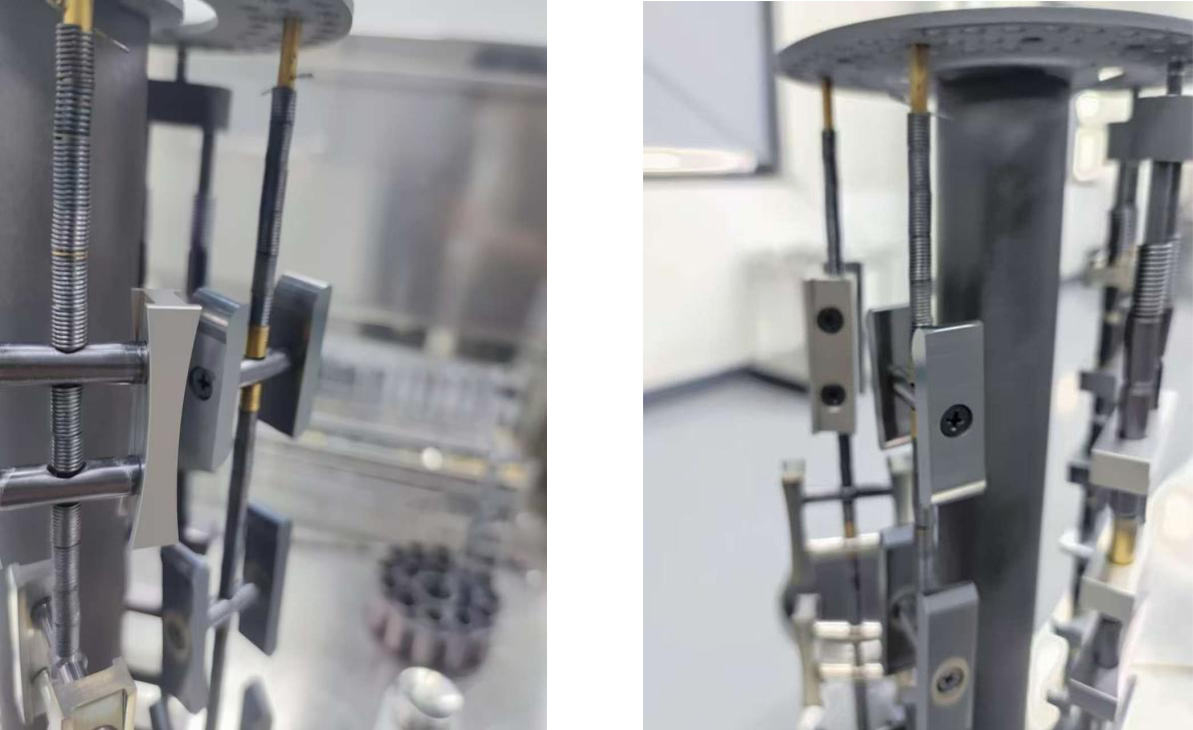

Future vacuum coating machines will integrate real-time AI monitoring—automatically adjusting target output, temperature, and gas ratios to ensure batch-to-batch process consistency and stability.

Conclusion

From addressing the core challenges of heavy-duty machining to achieving a breakthrough in ultra-thick and tough PVD coatings, the Huasheng Nanotechnology U2 coating demonstrates not only material innovation, but also deep integration of coating system design and vacuum deposition control.

With the continued adoption of intelligent, eco-friendly production technology, Huasheng Nanotechnology will remain committed to advancing coating solutions and supporting the evolution of China’s high-end manufacturing sector—contributing to the global advancement of tool coating and metal surface engineering.
