DLC Coatings Unlock Precision in RV & Harmonic Drive Gears

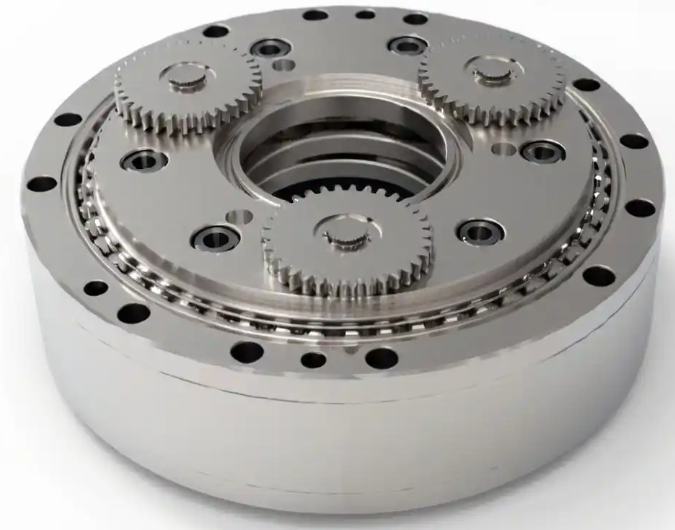

RV and harmonic drive gears are core components of high-precision transmission systems. Their performance directly affects the accuracy, reliability, and service life of advanced equipment such as collaborative robots, surgical robots, semiconductor wafer handling systems, and high-end CNC machines. For example, a six-axis collaborative robot may use 4–6 harmonic drives, and the fatigue life and precision of the flexspline critically determine positioning errors (≤0.01mm) and operational durability.

With the global precision gearbox market expected to exceed CNY 30 billion by 2025, RV and harmonic drives account for over 70% of this market. In China, local companies like Greens Harmonic have captured 15% of global share, yet surface treatment technology for key components has long been dependent on foreign suppliers. As robots evolve toward lighter, high-load, and long-life designs, component surface performance has become the bottleneck limiting accuracy and longevity.

Traditional surface treatments face four main challenges:

Flexspline fatigue failure: Thin-walled nickel-chromium steel flexsplines undergo cyclic radial deformation. Conventional quenching yields 36HRC hardness, with bending fatigue life averaging only 8,000 hours, prone to pitting and adhesion failures.

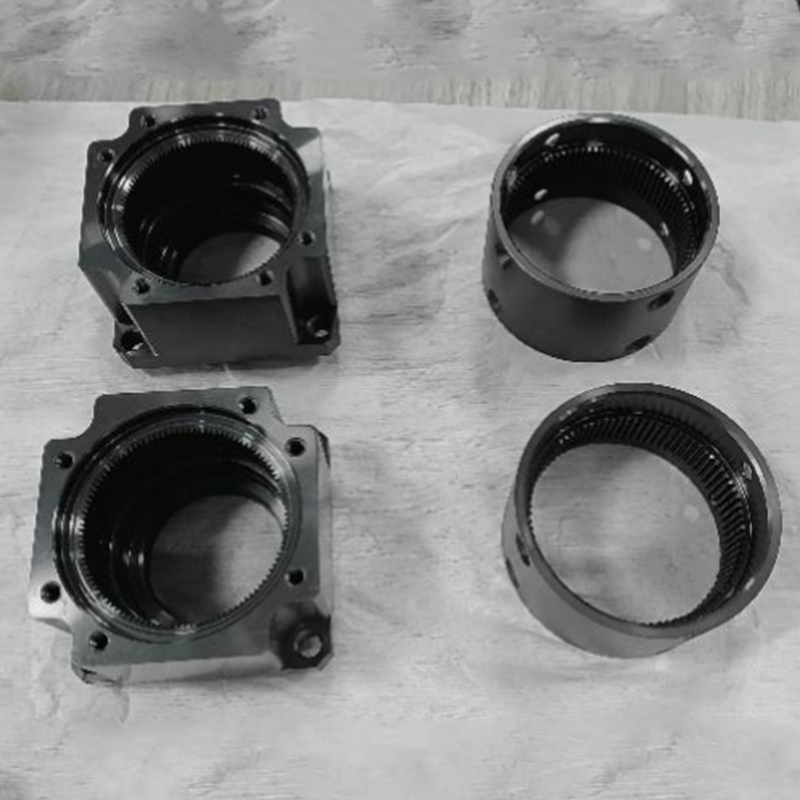

Rapid precision decay: Cycloidal wheels and needle gear housings require engagement gaps of 0.005–0.01mm. Shot-peening fails to maintain long-term wear resistance, leading to precision drop >30% after 2,000 hours, insufficient for micron-level positioning in semiconductor equipment.

High temperature and noise: Wave generators generate shear and frictional heat. Thin-walled flexsplines dissipate heat poorly, causing grease degradation. High friction coefficients (0.5–0.8 dry steel-on-steel) lead to noise, disrupting silent operation in medical robotics.

Coating compatibility issues: Chrome plating and nitriding cause high-temperature deformation and brittle coatings. Thin-walled components often exceed tolerance (＞0.02mm), and coatings may delaminate under repeated flexure, accelerating wear.

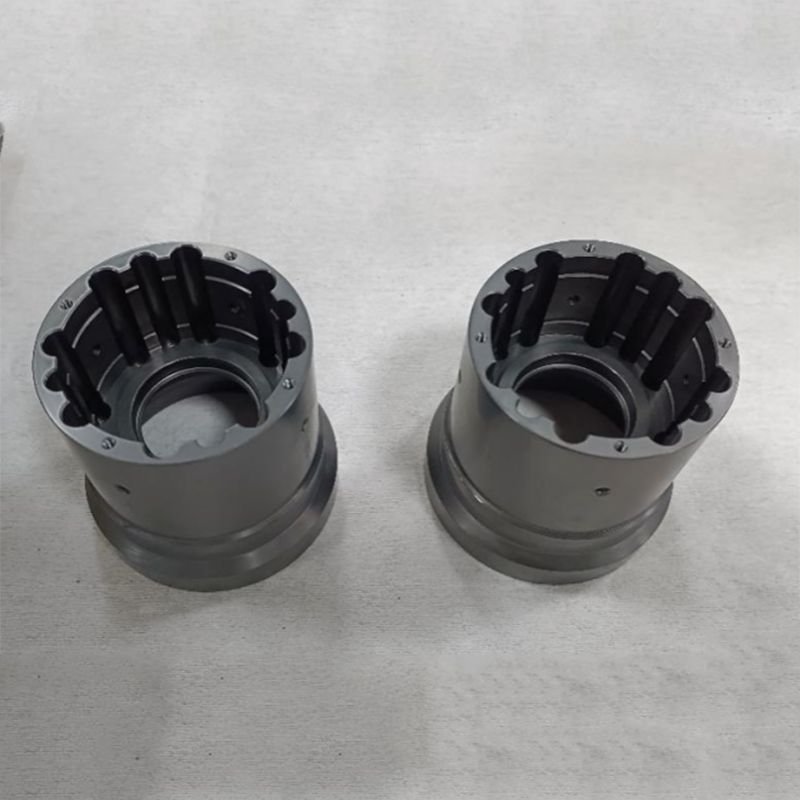

DLC (Diamond-Like Carbon) coatings offer precise solutions for these challenges:

Workload adaptation: DLC reduces dry friction to 0.1, lowering heat generation. Hardness up to 2500HV resists adhesion and pitting wear, perfectly matching flexspline deformation conditions.

Process compatibility: Deposition <150°C preserves dimensional tolerances (±0.005mm). Cr/Ti transition layers achieve HF1 adhesion grade, preventing delamination. Applicable to nickel-chromium steel and powder metallurgy bases.

Economic efficiency: Fatigue life extends to 20,000+ hours, precision retention increases from 2,000 to 8,000 hours, reducing costly downtime and lowering total lifecycle costs by 40–50%.

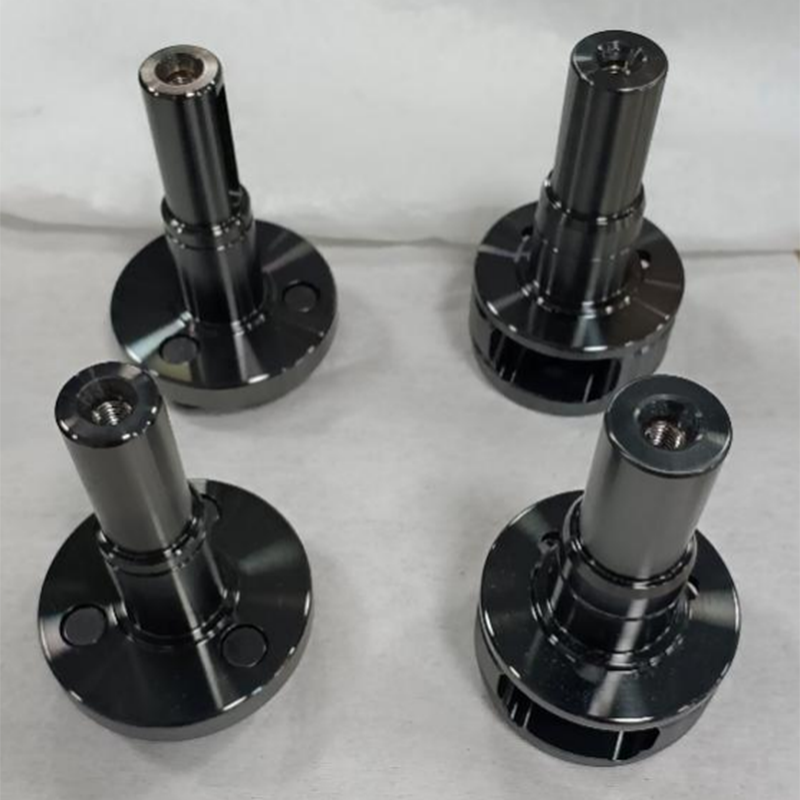

DLC coatings deliver five key advantages:

Balanced hardness and toughness: Ultra-thin 2–4μm coatings maintain wear resistance while preserving elastic deformation.

Low friction, heat, and noise: Friction drops 80%, temperature rise <30°C, noise reduced 5–8dB.

Precision maintenance: Thickness controlled within ±0.1μm, no secondary machining needed.

Multi-substrate adaptability: Custom coatings for powder metallurgy cycloidal wheels and nickel-chromium flexsplines.

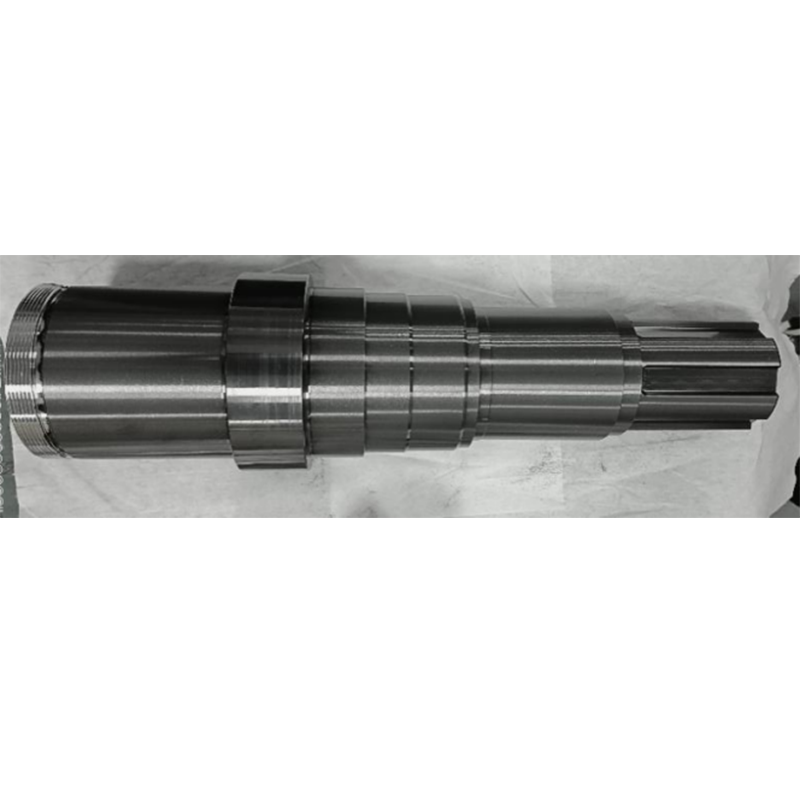

Application scalability: Robotics, semiconductor handling, and medical devices benefit from extended life, improved precision, and reduced noise.

Future trends include atomic-level coating customization, smart DLC with embedded sensors for predictive maintenance, and green low-carbon deposition compatible with CE and China’s dual-carbon policies. DLC coatings enable domestic RV and harmonic drives to achieve global high-end competitiveness.
