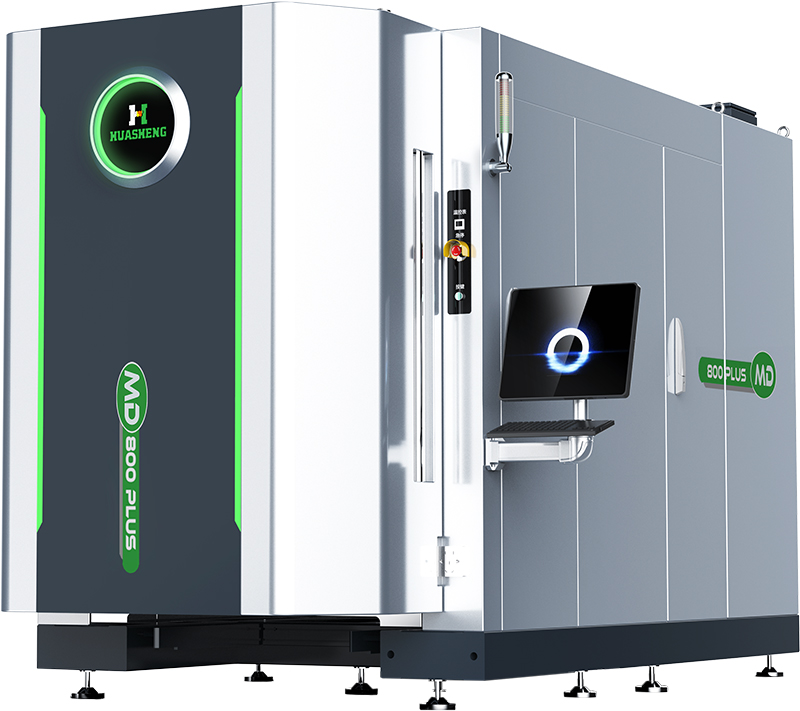

MD800 Plus Arc Coating Equipment
15 +
Years Experience
700 +
Installations Worldwide
OEM
Solutions Available
30 +
Countries & Regions
Large Loading Capacity
Suitable for larger-volume production and higher daily coating output.
8 Arc Sources for High Output
Supports efficient deposition and consistent industrial coating production.
Strong Process Compatibility
Suitable for milling, drilling, turning, and hobbing tool coating applications.
Convenient Maintenance Design
Optimized arc source structure supports easier operation and routine maintenance.
-
8 arc sources
-
1 m³ chamber volume
-
10 trees loading capacity
-
High output coating production
-
Strong process compatibility
-
Industrial batch production
Model No. |
MD800 PLUS |
| Coating Technology | Arc ion plating |
| Etching | WET lateral hot filament etching |
| Dimension (mm) | L3750 × W2400 × H2500 |
Chamber volume (m³) |
1.0 |
Effective Coating Area (mm) |
Φ650 × 400 |
Max Working Temp. (°C) |
600 |
Capacity (trees) |
10 |
| Insert Load (APMT1135) | 12000 pcs |
| Round tool Load (D4×50L) | 3600 pcs |
| Hobbing Tool Load (D80×L150) | 30 pcs |
| Max Load (KG) | 500 |
| Spindle diameter (mm) | Φ130 |
| Process Time (h) | AlTiN 6–8 |
MD800 Plus is designed for industrial cutting tool coating production with higher loading capacity, stable arc coating performance, and flexible process compatibility.
Contact us
What is MD800 Plus arc coating equipment used for?
MD800 Plus is used for PVD arc ion plating on cutting tools such as carbide end mills, drills, indexable inserts, turning tools, milling tools, hobbing tools, and gear cutting tools. It is suitable for manufacturers that need high-capacity and stable batch coating production.
What coating technology does MD800 Plus use?
MD800 Plus uses arc ion plating technology with WET lateral hot filament etching. The arc coating system supports efficient deposition, while WET etching helps clean and activate the tool surface before coating, improving coating adhesion and process stability.
What is the loading capacity of MD800 Plus?
MD800 Plus has a 1.0 m³ chamber and 10-tree loading capacity. It can load about 12000 pcs APMT1135 inserts, 3600 pcs D4×50L end mills, or 30 pcs D80×L150 hobbing tools per batch, depending on tool size, fixture design, and coating requirements.
Is MD800 Plus suitable for high-volume industrial production?
Yes. MD800 Plus is designed for larger-volume industrial coating production. With 8 arc sources, larger chamber volume, and higher loading capacity, it is suitable for tool manufacturers and coating centers that need stable output and consistent coating quality.
What types of manufacturers are suitable for MD800 Plus?
MD800 Plus is suitable for insert and indexable tool manufacturers, end mill and drill producers, gear cutting and hobbing tool manufacturers, automotive tool suppliers, precision machining companies, and industrial coating production centers.
What are the main advantages of MD800 Plus compared with smaller models?
Compared with MD200 and MD500, MD800 Plus offers higher loading capacity, 8 arc sources, a 1.0 m³ chamber, stronger process compatibility, and better production efficiency for batch coating. It is a better choice for customers with larger coating demand and long-term industrial production plans.
Can Huasheng provide process support and after-sales service for MD800 Plus?
Yes. Huasheng can provide equipment selection, coating process recommendations, installation and commissioning, operator training, process guidance, spare parts supply, equipment maintenance support, and long-term after-sales service based on the customer’s tools and production requirements.
