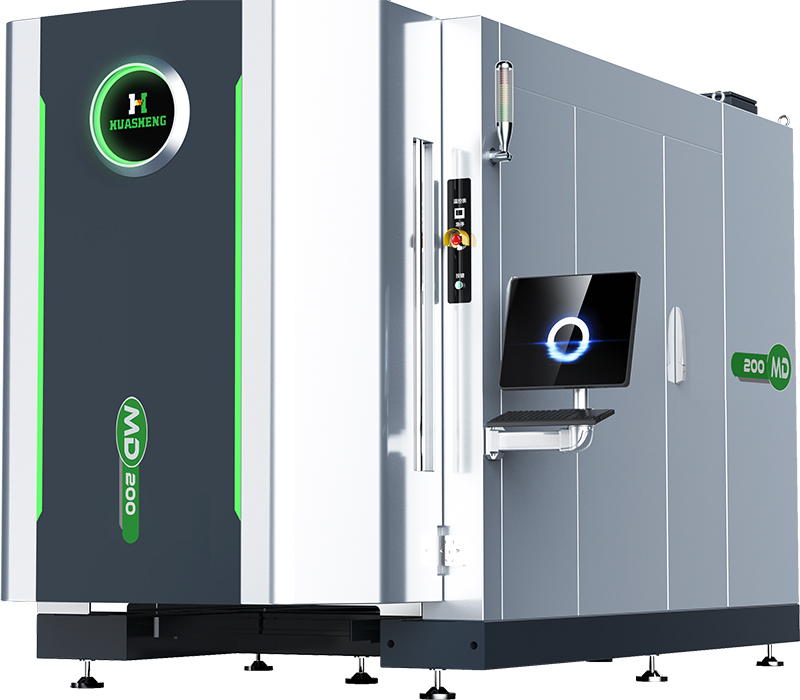

MD200 – Arc Coating Equipment
15 +
Years Experience
700 +
Installations Worldwide
OEM
Solutions Available
30 +
Countries & Regions
Flexible Small-Batch Production
Ideal for non-standard tools, repair tools, and mixed coating jobs.
Lower Investment
A practical entry-level solution for manufacturers building in-house coating capacity.
WET Etching for Better Adhesion
Surface cleaning and activation help improve film adhesion and process stability.
Automatic & Easy Operation
Touch-screen control, recipe storage, alarms, and historical records support efficient daily operation.
-
4 arc sources
-
0.5 m³ chamber volume
-
3 trees loading capacity
-
Compact footprint
-
Easy maintenance
-
Suitable for inserts and end mills
Model No. |
MD200 |
| Coating Technology | Arc ion plating |
| Etching | WET lateral hot filament etching |
| Dimension (mm) | L3400 × W2000 × H2500 |
Chamber volume (m³) |
0.5 |
Effective Coating Area (mm) |
Φ310 × 400 |
Max Working Temp. (°C) |
500 |
Capacity (trees) |
3 |
| Insert Load (APMT1135) | 3600 pcs |
| Round tool Load (D4×50L) | 1000 pcs |
| Max Load (KG) | 200 |
| Spindle diameter (mm) | Φ130 |
| Process Time (h) | AlTiN 6–8 |
MD200 is designed for manufacturers who need a compact, reliable, and flexible arc coating system for small-batch cutting tools, repaired tools, and non-standard tool coating production.
Contact us
What is MD200 arc coating equipment used for?
MD200 is mainly used for PVD arc ion plating on cutting tools, inserts, drills, end mills, resharpened tools, and non-standard tools. It is suitable for small-batch coating production and flexible in-house coating needs.
What type of coating technology does MD200 use?
MD200 uses arc ion plating technology with WET lateral hot filament etching. The arc coating process supports high ionization rate deposition, while WET etching helps clean and activate the tool surface before coating.
Is MD200 suitable for small-batch production?
Yes. MD200 is designed for small-batch and flexible production. It has a 0.5 m³ chamber, 3-tree loading capacity, and compact equipment size, making it suitable for tool repair shops, small tool manufacturers, and factories with mixed coating orders.
What is the loading capacity of MD200?
MD200 supports 3 trees loading capacity. It can load about 3600 pcs APMT1135 inserts or 1000 pcs D4×50L end mills per batch, depending on tool type, fixture design, and coating process requirements.
What are the main advantages of MD200?
The main advantages of MD200 include compact footprint, lower investment, flexible production, stable coating quality, WET etching for better adhesion, automatic operation, and easy maintenance for daily coating production.
What industries are suitable for MD200 coating equipment?
MD200 is suitable for cutting tool manufacturers, tool regrinding workshops, non-standard tool producers, small-batch machining companies, mold machining suppliers, and factories that want to build in-house coating capability.
Can Huasheng provide coating process support for MD200?
Yes. Huasheng can provide equipment selection, coating process recommendation, installation and commissioning, operator training, process guidance, spare parts supply, and long-term after-sales support based on the customer’s tools and production needs.
