    Industrial Coating Machine

    High-Quality G4plus HIPIMS Coating Machine from China Suppliers & Factory for Superior Coatings

    ,

    Introducing the G4plus, a state-of-the-art coating equipment that combines the advanced features of High Power Impulse Magnetron Sputtering (HIPIMS) and Arc (ARC) technologies. This innovative system, developed by leading China suppliers, boasts a unique four-target design that enhances flexibility in material selection and precise deposition process control. With high-power, adjustable square-wave capabilities and controllable ionization plasma technology, the G4plus creates premium-quality coatings characterized by strong adhesion, uniform structure, and an impeccably smooth, droplet-free surface.

    ,

    A significant advantage of the G4plus is its versatile coating thickness range, allowing production of ultra-thin coatings as delicate as 0.5μm and robust layers reaching up to 30μm. The coating structure can be easily adjusted between columnar and dense crystalline forms, catering to the specific performance needs of various operational conditions. By marrying the benefits of arc technology with the low internal stress and droplet-free surface performance of magnetron sputtering, the G4plus achieves unparalleled coating density.

    ,

    With enhanced production efficiency, extended tool life, and exceptional surface quality, the G4plus is the perfect solution for high-end manufacturing applications in factories worldwide.

    ,
      Contact us

      Product Advantage

      High deposition rate

      The current density of the arc spot is as high as 1012A/m2, and the energy density is as high as 1013W/m2. The high energy density directly leads to the transformation of the target material at the arc spot from solid phase to metal vapor plasma.

      High ionization rate

      Arc discharge is generated between the cathode evaporation source and the shell, and glow discharge is generated between the workpiece base and the shell, causing the cathode target to evaporate and ionize, generally up to 60-80%.

      efficient and convenient

      Fully automatic coating system, efficient and reliable, capable of batch production 4-5 times a day, equipped with historical records, storable process recipes, offline editing, abnormal alarm, and touch screen operation.

      High impact resistance

      The film has moderate hardness, film adhesion, high rigidity, and good impact resistance, suitable for rough machining.

      Product characteristics

      • Product characteristics
        Capability for fast delivery (Get the shortes production process)
      • Product characteristics
        Customized individually
      • Product characteristics
        High stability (More than 10 years ofproduction experience)
      MD Equipment-Arc PVD Coating

      Workpiece:

      42CrMo (38-42HRC)

      GB：42CrMo

      ASME：4140

      JIS：SCM440

      Cutting data：Blind Hole Drilling

      Cutting speed Vc = 70m/min

      Feeding Fn = 0.15mm/r

      Cooling：External cooling, Emulsion

      MD Equipment-Arc PVD Coating (3)

      Result：

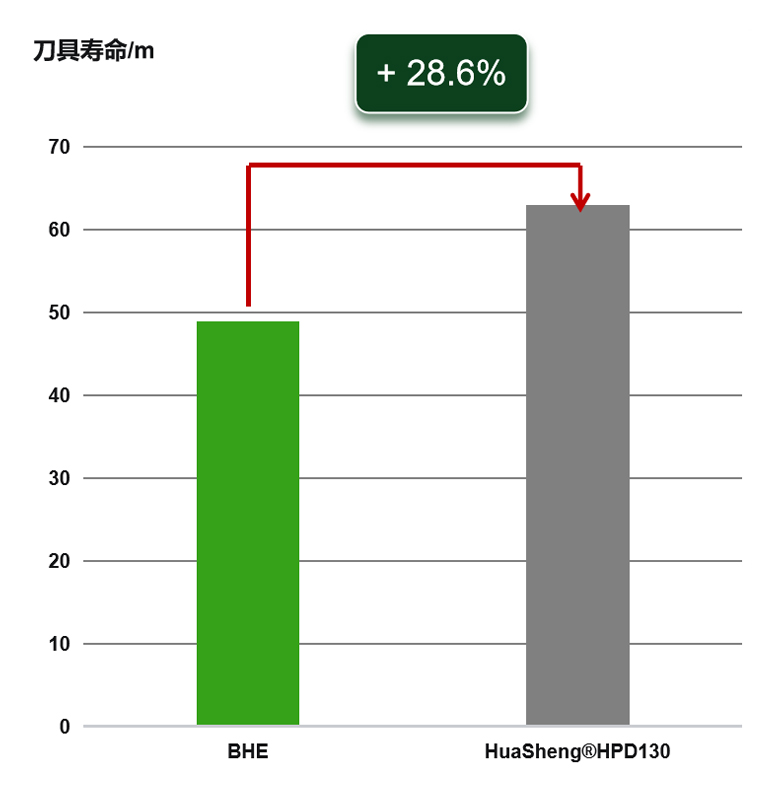

      Huasheng's HPD130 coated tool can achieve a cutting life of 63 meters

      The coated tool from competitor BHE offers a cuttinglife of 49 meters。

      The cutting life has been improved by 28.6%

      MD Equipment-Arc PVD Coating (1)
      MD Equipment-Arc PVD Coating (10)

      Product Parameter

      Product Details

      Properties G4PLUS
      Coating technology
      		Fourth generation composite coating technology
      Etching
      		HET
      Equipment size(mm)
      		Length3750*Width1650*Height2700
      Volume（m³）
      		0.7
      Effective coating area (mm)
      		Ф410*400
      Maximum working temperature（℃）
      		700
      Capacity (number of trees)
      		5
      Insert load （APMT1135）
      		6000pcs
      End mill load (D4*50L)
      		1800pcs
      Maximum loading weight（KG）
      		300
      Spindle diameter（mm）
      		Ф130
      Process time（h）
      		AlTiN:6~8
      Frequently Asked Questions (FAQ)
      Q: What coating technology is utilized by the G4PLUS system?
      The G4PLUS utilizes the Fourth generation composite coating technology, which offers advanced surface treatment capabilities.
      Q: What is the maximum working temperature and volume capacity of the G4PLUS?
      The G4PLUS has a maximum working temperature of 700℃ and features a chamber volume of 0.7 m³.
      Q: How many inserts and end mills can the G4PLUS accommodate per batch?
      The equipment has a loading capacity of 6000pcs for inserts (APMT1135) and 1800pcs for end mills (D4*50L), with a capacity of 5 trees.
      Q: What is the process time for AlTiN coating?
      The typical process time for AlTiN coating on the G4PLUS is between 6 to 8 hours.
      Q: What are the dimensions and maximum weight capacity of the G4PLUS equipment?
      The physical dimensions of the equipment are Length 3750mm * Width 1650mm * Height 2700mm, and it supports a maximum loading weight of 300 KG.
