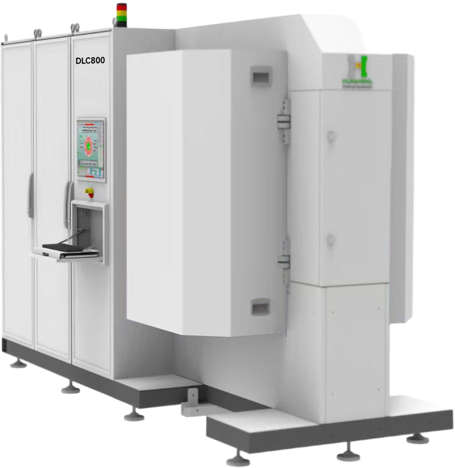

DLC800 DLC Coating Equipment
15 +
Years Experience
700 +
Installations Worldwide
OEM
Solutions Available
30 +
Countries & Regions
Compact Size for Small-Batch Production
DLC800 is suitable for customers who need flexible production capacity without investing in a large coating system. Its compact chamber design helps reduce space requirements while still supporting stable DLC coating production.
MS + PECVD Hybrid Coating Technology
The system combines magnetron sputtering and PECVD technology to prepare Cr/WC/a-C:H DLC coatings. This process supports smooth coating surfaces, low friction, and reliable film structure for industrial components.
Plasma Cleaning for Better Adhesion
Before coating, plasma etching is used to clean the surface of workpieces. This helps remove surface impurities and improves the bonding strength between the substrate and the coating.
Easy Operation and Maintenance
The system is designed with automated process control, modular functional components, and convenient maintenance access, reducing the operation difficulty for daily coating production.
-
2–4 μmTypical coating thickness
-
≤0.1Low friction coefficient
-
≈2500 HVCoating hardness
-
Smooth coating surface
-
Stable adhesion strength
-
Compact chamber structure
Model No. |
DLC800 |
| Coating Technology | MS + PECVD |
| Etching | SET |
| Dimension | L4850 × W1600 × H2400 mm |
Chamber volume |
0.8 m³ |
Effective Coating Area |
Φ650 × 400 mm |
Coating Deposition Temperature |
<200°C |
Capacity |
Made-to-order |
| Max Loading Weight | 500 kg |
| Spindle Diameter | Φ170 mm |
| Processing Time | 6–8 h |
