    DLC1500 DLC Coating Equipment

    DLC1500 is a large-capacity DLC coating machine designed for industrial mass production. It combines magnetron sputtering and PECVD technology to produce low-friction, wear-resistant DLC coatings with smooth surface quality and stable adhesion.
    With a 2 m³ chamber volume, larger effective coating area, and 1000 kg loading capacity, DLC1500 is suitable for manufacturers that require higher output and stable batch coating performance.

      Request a Quote
      Coating1

      15 +

      Years Experience

      Installation1

      700 +

      Installations Worldwide

      Customized Solutions3

      OEM

      Solutions Available

      Innovation Driven1

      30 +

      Countries & Regions

      Why Choose DLC1500 DLC Coating Equipment?

      Large-Capacity Production

      DLC1500 is built for manufacturers that need higher output and larger batch capacity in DLC coating production.

      Low-Friction and Wear-Resistant Coating

      The system deposits Cr/WC/a-C:H DLC coatings that improve wear resistance, reduce friction, and support longer service life for coated parts.

      Smooth Coating and Reliable Adhesion

      Plasma cleaning, transition layer deposition, and DLC layer deposition work together to deliver smooth coating quality and stable adhesion performance.

      Designed for Industrial Batch Processing

      With larger chamber size, higher loading capacity, and automated process control, DLC1500 is suitable for continuous industrial production.

      DLC1500 Features

      • 2–4 μm
        Typical coating thickness
      • ≈2500 HV
        High coating hardness

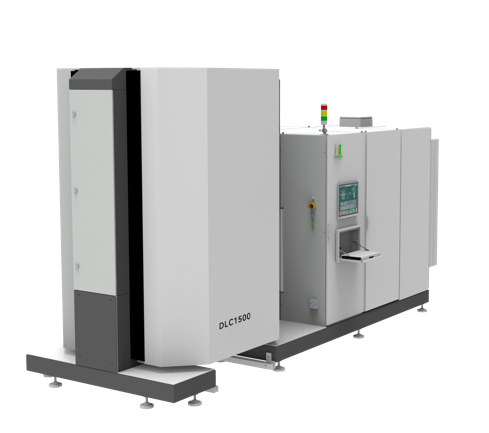

      DLC1500 DLC Equipment
      • Large coating area
      • Stable batch production
      • Low friction coefficient

      Product Parameter

      Model No.
      		 DLC1500
      Coating Technology
      MS + PECVD
      Etching SET
      Dimension
      L4900 × W2000 × H2750
      Chamber volume
      2m³
      Effective Coating Area
      		 Φ940 × 1000 mm
      Coating Deposition Temperature
      		 <200°C
      Capacity
      		 Made-to-order
      Max Loading Weight 100 kg
      Spindle Diameter
      Max. Φ350 mm
      Processing Time 6–8 h

      sendinquiry

      DLC1500 FAQ

      Find quick answers about DLC1500 coating capacity, technical specifications, DLC coating performance, suitable applications, customization, installation, and after-sales support for industrial production.
      Contact us

      Is DLC1500 suitable for mass production?

      Yes. DLC1500 is designed for industrial batch production, with a 2 m³ chamber volume, Φ940 × 1000 mm effective coating area, and 1000 kg max loading weight, making it suitable for manufacturers with higher coating output needs.

      What coating technology does DLC1500 use?

      DLC1500 uses MS + PECVD technology, combining magnetron sputtering and PECVD to deposit Cr/WC/a-C:H DLC coatings with low friction, wear resistance, smooth surface quality, and stable adhesion.

      What is the loading capacity of DLC1500?

      DLC1500 has a chamber volume of 2 m³, an effective coating area of Φ940 × 1000 mm, and a maximum loading weight of 1000 kg, supporting larger workpieces and higher batch quantities.

      What is the typical process time for one batch?

      The typical process time is around 6–8 hours per batch, depending on coating requirements, workpiece material, loading quantity, and process settings.

      What industries are suitable for DLC1500?

      DLC1500 is suitable for automotive parts, new energy vehicles, lithium battery equipment, textile machinery, mechanical components, precision shafts, bearing parts, and other industrial wear-resistant applications.

      Can DLC1500 be customized for different workpieces?

      Yes. DLC1500 can be customized based on workpiece size, loading method, fixture design, coating requirements, production capacity, and factory layout.

      What support does Huasheng provide after purchase?

      Huasheng can provide equipment installation, commissioning, operator training, process guidance, spare parts support, and long-term after-sales service to help customers start and maintain stable coating production.
