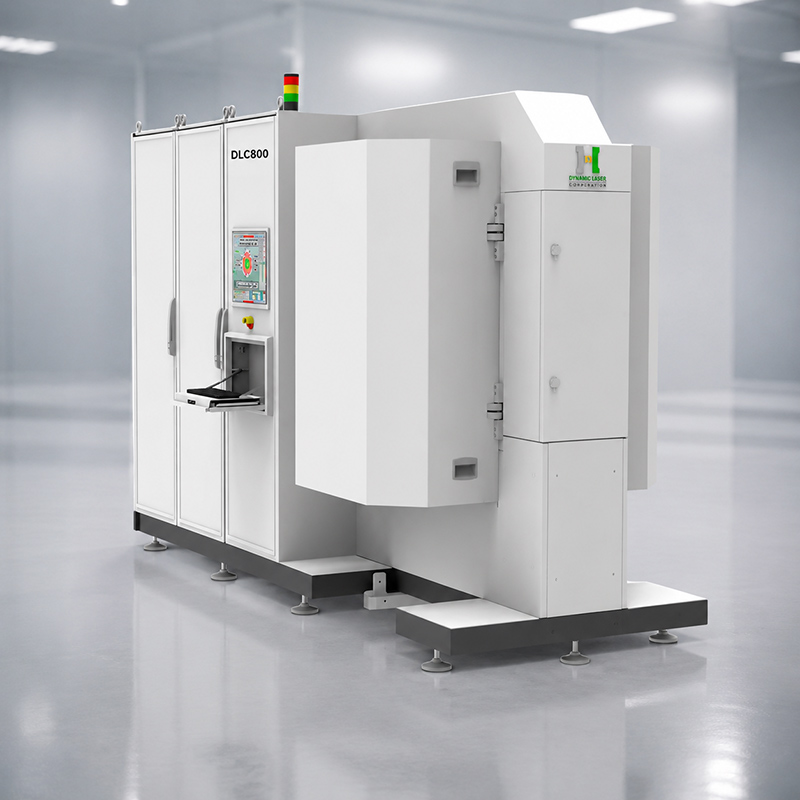

    dlc800 DLC Coating Equipment
    DLC800 DLC Coating Machine

    Compact DLC800 Coating Equipment by China Suppliers - Wear-Resistant, Low-Friction Solutions from Factory

    Discover the Huasheng DLC800, a cutting-edge compact DLC coating equipment designed for small-batch production of wear-resistant and low-friction coatings. As a leading supplier in China, our factory utilizes advanced magnetron sputtering and PECVD technology to produce high-quality Cr/WC/a-C:H DLC coatings. These coatings are renowned for their exceptional wear resistance, low friction characteristics, and superior surface quality, ensuring strong adhesion and durability. Ideal for industrial applications, the Huasheng DLC800 is the perfect solution for businesses seeking reliable and efficient coating production in small quantities.

      Contact us

      Product Advantage

      High deposition rate

      The current density of the arc spot is as high as 1012A/m2, and the energy density is as high as 1013W/m2. The high energy density directly leads to the transformation of the target material at the arc spot from solid phase to metal vapor plasma.

      High ionization rate

      Arc discharge is generated between the cathode evaporation source and the shell, and glow discharge is generated between the workpiece base and the shell, causing the cathode target to evaporate and ionize, generally up to 60-80%.

      efficient and convenient

      Fully automatic coating system, efficient and reliable, capable of batch production 4-5 times a day, equipped with historical records, storable process recipes, offline editing, abnormal alarm, and touch screen operation.

      High impact resistance

      The film has moderate hardness, film adhesion, high rigidity, and good impact resistance, suitable for rough machining.

      Product characteristics

      • Product characteristics
        Capability for fast delivery (Get the shortes production process)
      • Product characteristics
        Customized individually
      • Product characteristics
        High stability (More than 10 years ofproduction experience)
      MD Equipment-Arc PVD Coating

      Workpiece:

      42CrMo (38-42HRC)

      GB：42CrMo

      ASME：4140

      JIS：SCM440

      Cutting data：Blind Hole Drilling

      Cutting speed Vc = 70m/min

      Feeding Fn = 0.15mm/r

      Cooling：External cooling, Emulsion

      MD Equipment-Arc PVD Coating (3)

      Result：

      Huasheng's HPD130 coated tool can achieve a cutting life of 63 meters

      The coated tool from competitor BHE offers a cuttinglife of 49 meters。

      The cutting life has been improved by 28.6%

      MD Equipment-Arc PVD Coating (1)
      MD Equipment-Arc PVD Coating (10)

      Product Parameter

      Product Details

      Model No.
      DLC800
      Coating Technology
      MS + PECVD
      Deposition Temp.
      <200°C
      Max Loading Weight
      500 kg
      Parameter Specification Details
      Model No. DLC800
      Coating Technology MS + PECVD (Magnetron Sputtering + Plasma Enhanced Chemical Vapor Deposition)
      Etching SET

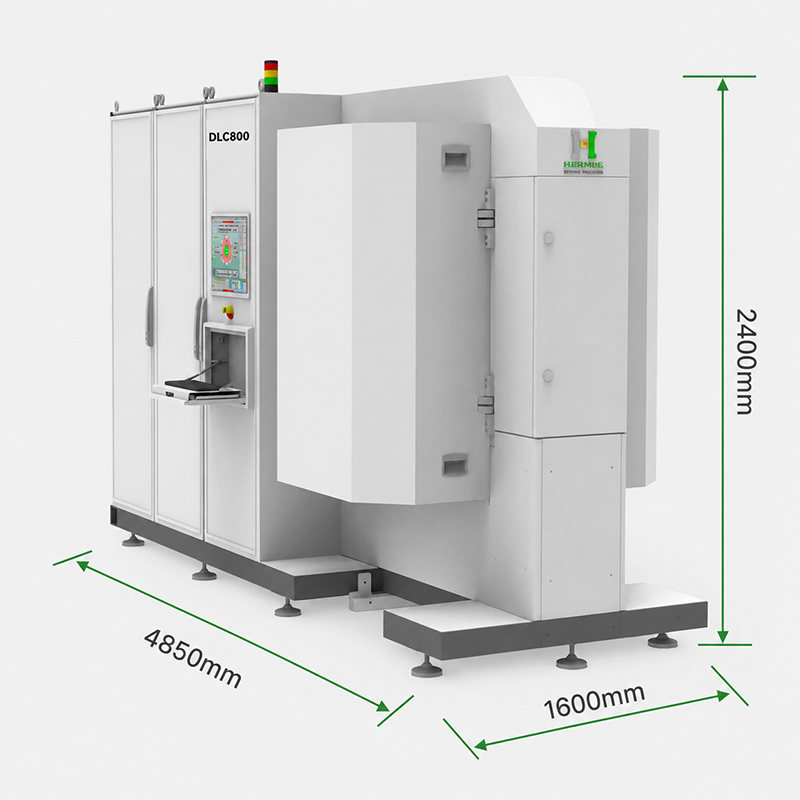

      Dimension L4850 × W1600 × H2400 mm
      Chamber Volume 0.8 m³
      Effective Coating Area Φ650 × 400 mm
      Coating Deposition Temperature <200°C
      Capacity Made-to-order
      Max Loading Weight 500 kg
      Spindle Diameter Φ170 mm
      Processing Time 6–8 h
      Frequently Asked Questions
      What coating technology does the DLC800 system utilize?
      The DLC800 system integrates both MS (Magnetron Sputtering) and PECVD (Plasma Enhanced Chemical Vapor Deposition) technologies to deliver high-quality, durable coatings.
      What is the maximum loading weight and capacity of the DLC800?
      The system supports a maximum loading weight of 500 kg. The overall production capacity is made-to-order, tailored specifically to meet your production requirements.
      What are the physical dimensions and chamber volume of this equipment?
      The physical dimensions of the DLC800 are L4850 × W1600 × H2400 mm, with a spacious chamber volume of 0.8 m³ and an effective coating area of Φ650 × 400 mm.
      What is the typical processing time for a coating cycle?
      A standard coating and processing cycle with the DLC800 system takes approximately 6 to 8 hours, depending on the specific coating thickness and material requirements.
      Does the DLC800 require high temperatures for deposition?
      No, the DLC800 operates at a low coating deposition temperature of less than 200°C (<200°C), making it highly suitable for substrates that are sensitive to high heat.
